Description

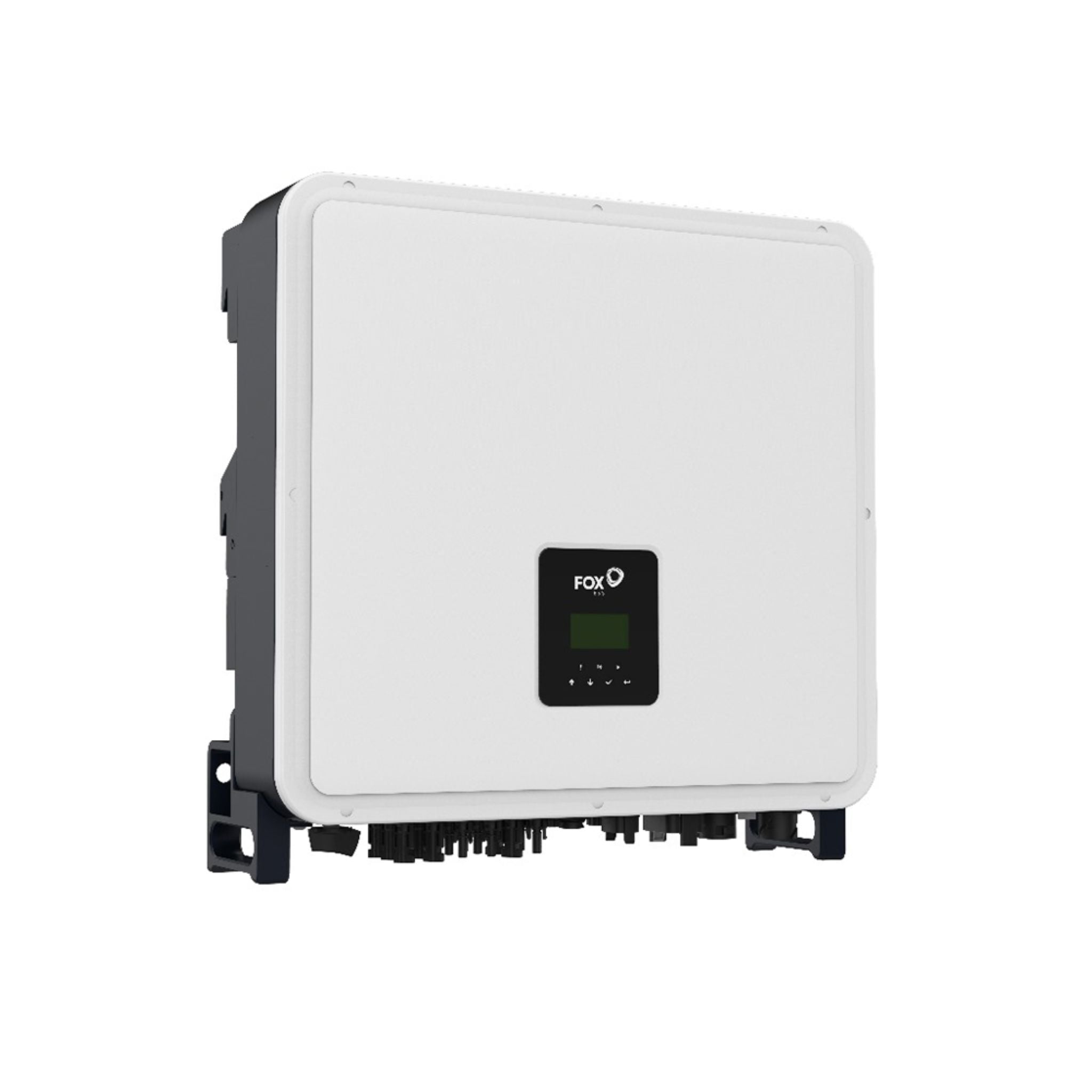

Fox ESS H3 Pro 15kW 3PH Hybrid Inverter – High-Performance Energy Management for Large-Scale Systems

The Fox ESS H3 Pro 15kW 3PH Hybrid Inverter is an advanced, high-capacity three-phase hybrid inverter designed for residential and commercial energy storage solutions. This powerful inverter integrates seamlessly with solar and battery storage systems, providing efficient energy conversion, flexible system configuration, and robust performance. With its enhanced features such as multiple MPPT trackers and full emergency power capabilities, this inverter is the ideal solution for large-scale installations requiring optimal energy management and reliability.

Key Features

• 15kW Rated Power – Provides high-capacity and reliable energy conversion for large systems
• 3 MPPT Trackers – Enables optimized energy management across multiple solar arrays, ensuring maximum energy harvesting
• Full Three-Phase Emergency Power Capability – Ensures continuous power supply to critical loads during grid failures
• Two Battery Inputs – Makes connecting high-voltage batteries easier and more flexible
• Modern and Functional Design – Compact and robust, designed for long-term performance in various environments
• Remote Monitoring – Allows for real-time monitoring and analysis through web or mobile applications
• Smart Meter and WiFi Dongle – Included in the scope of delivery for easy installation and remote access
• 10-Year Warranty – Includes 5 years as standard, with the option to extend to 10 years via registration


Technical Specifications

• Rated Power: 15,000 W
• Min PPT Voltage: 160 V
• Max PPT Voltage: 1,000 V
• DC Startup Voltage: 160 V
• DC Shutdown Voltage: 1,000 V
• Max Input Voltage: 1,000 V
• Max DC Power: 22,500 W
• Max AC Power (5 Minutes): 15,000 W
• Surge AC Power (1 Second): 16,500 W
• Max DC Current: 32 A
• Max DC Inputs: 6
• Has DC Fuses: Yes (1)
• Connector Type: MC4
• Included Connectors: 3
• MPPT Quantity: 6
• Has Integrated DC Switch: Yes
• Euro Efficiency: 97.3%
• Transformer: N/A
• Warranty: 5 years (extendable to 10 years through registration)

• Supplier Part No: FE-H3-PRO-15.0
• Weight: 52.5 kg

Fox ESS inverters are not compatible with SolarEdge or Huawei optimizers, but work with Tigo optimizers.

Applications

• Residential Solar Storage – Ideal for storing excess solar energy for later use, helping reduce energy costs and reliance on the grid.
• Commercial & Industrial Backup Power – Provides essential power to critical systems and operations during grid outages.
• Off-Grid & Hybrid Energy Systems – Supports energy independence by combining solar generation with battery storage.
• Self-Consumption Optimization – Maximizes the use of solar energy to reduce grid consumption and lower electricity bills.


What’s Included in the Box?

• Fox ESS H3 Pro 15kW 3PH Hybrid Inverter
• Smart Meter
• WiFi Dongle
• CT Clamps
• MC4 Connectors (x3)
• User Manual
• Installation Guide


Important Notes

• Fox ESS inverters are not compatible with SolarEdge or Huawei optimizers, but work with Tigo optimizers.
• Smart Meter and WiFi Dongle are included in packaging for easy installation and remote monitoring.
• This product requires the FE-3PH-METER-CT for full operation.
• Installation must be carried out by a qualified professional following local regulations.
• Solareon UK will not be held liable for any product malfunctions due to incorrect installation.


The Fox ESS H3 Pro 15kW 3PH Hybrid Inverter offers high-performance, flexible, and reliable energy management for large-scale solar and battery storage systems, making it the perfect choice for maximizing the efficiency and performance of your energy system.
