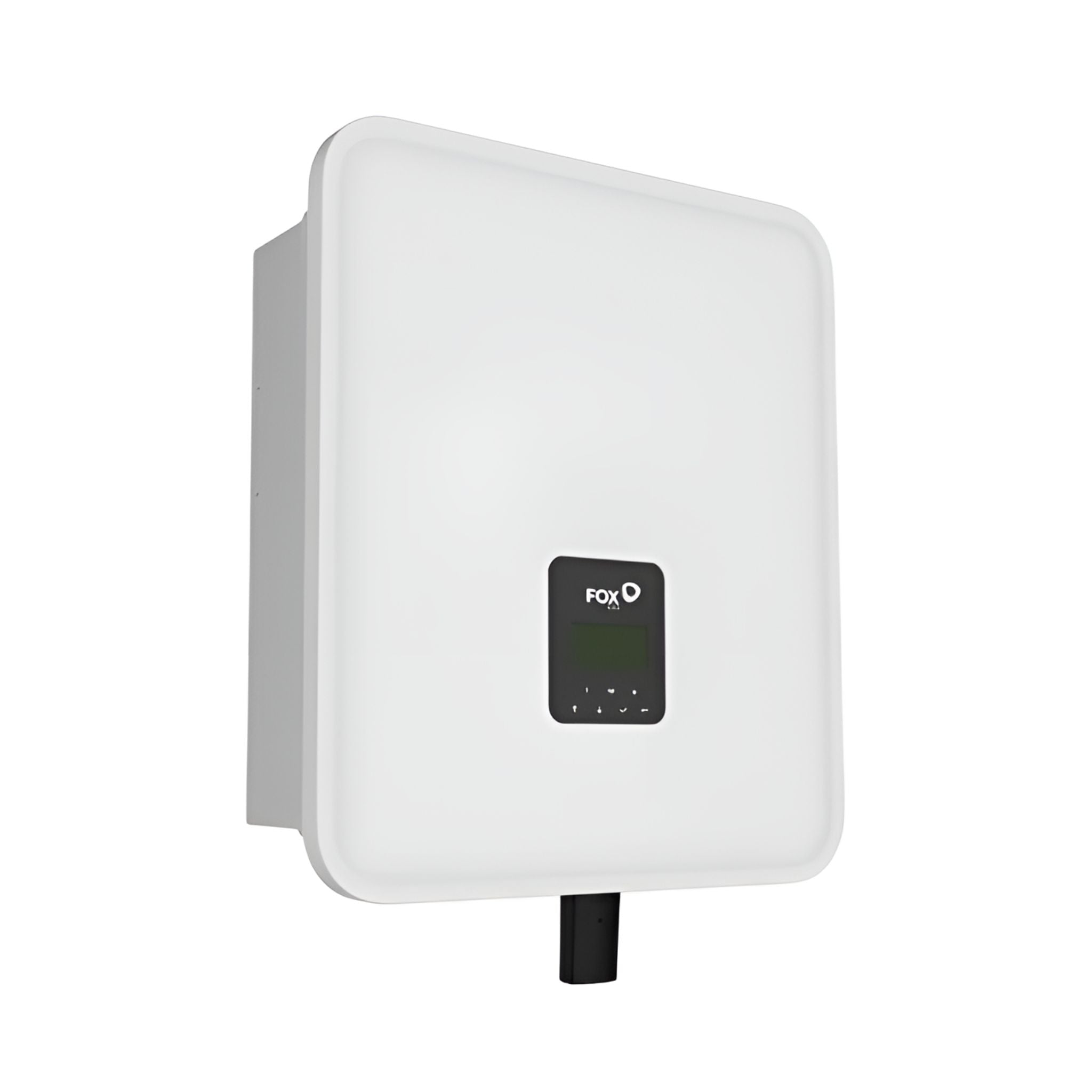

Fox ESS H3 10.0kW 3PH Hybrid Inverter – High-Performance Three-Phase Energy Management

The Fox ESS H3 10.0kW 3PH Hybrid Inverter is a high-performance and efficient three-phase hybrid inverter designed for both residential and commercial energy storage applications. Equipped with advanced power management features, this inverter seamlessly integrates with solar and battery storage systems, ensuring maximum energy utilization and minimizing reliance on the grid.

Key Features

• 10.0kW Rated Power – Delivers stable and reliable energy conversion
• Hybrid Technology – Supports both solar and battery storage for enhanced energy utilization
• Wide Voltage Range – Operates from 160V to 1,000V, providing flexibility in system design
• High Efficiency – 98% Euro efficiency ensures minimal energy loss
• Integrated DC Switch – Enhances safety and simplifies installation
• Surge Power Handling – Up to 11,000W for 1 second to manage peak loads
• Smart Monitoring – Enables real-time tracking of system performance


Technical Specifications

• Rated Power: 10,000 W
• Min PPT Voltage: 160 V
• Max PPT Voltage: 1,000 V
• DC Startup Voltage: 160 V
• DC Shutdown Voltage: 160 V
• Max Input Voltage: 1,000 V
• Max DC Power: 13,000 W
• Max AC Power (5 Minutes): 10,000 W
• Surge AC Power (1 Second): 11,000 W
• Max DC Current: 26 A
• Max DC Inputs: 3
• Has DC Fuses: Yes (1)
• Connector Type: MC4
• Included Connectors: 6
• MPPT Quantity: 2
• Has Integrated DC Switch: Yes
• Euro Efficiency: 98%
• Warranty: 5 Years

• Supplier Part No: FE-H3-10.0
• Weight: 28 kg

Compatible Battery Systems

The Fox ESS H3 10.0kW Hybrid Inverter is compatible with the following battery systems:

• 1x FE-HV-BMS + (4-8)x FE-HV-2600
• 1x ECM-2900 (Master) + 2-6x ECS-2900 (Slave)
• 1x ECM-4100 (Master) + 2-6x ECS-4100 (Slave)
• 1x ECM-4300 (Master) + 2-6x ECS-4300 (Slave)
• 1x ECM-4800 (Master) + 2-6x ECS-4800 (Slave)

Fox ESS inverters are not compatible with SolarEdge or Huawei optimizers, but work with Tigo optimizers.

Applications

• Residential Solar Storage – Store excess solar energy for use during peak demand or nighttime hours.
• Commercial & Industrial Backup Power – Ensures continuous power supply to critical loads during grid failures.
• Off-Grid & Hybrid Energy Systems – Supports energy independence by integrating with solar and battery storage.
• Self-Consumption Optimization – Reduces reliance on the grid by maximizing the use of solar-generated power.

What’s Included in the Box?

• Fox ESS H3 10.0kW 3PH Hybrid AC Inverter
• 3PH Smart Meter
• CT Clamps
• MC4 Connectors (x4)
• User Manual
• Installation Guide

Important Notes

• Fox ESS inverters are not compatible with SolarEdge or Huawei optimizers but work with Tigo optimizers.
• 3PH Smart Meter included in packaging.
• This product requires the FE-3PH-METER-CT for full operation.
• Installation must be carried out by a qualified professional following local regulations.
• Solareon UK will not be held liable for any product malfunctions as a result of incorrectly installed systems.

The Fox ESS H3 10.0kW 3PH Hybrid Inverter is a powerful solution designed to optimize solar energy storage, ensuring maximum performance and long-term efficiency for your energy system.

PLEASE NOTE: This product requires the following meter for full operation: FE-3PH-METER-CT
