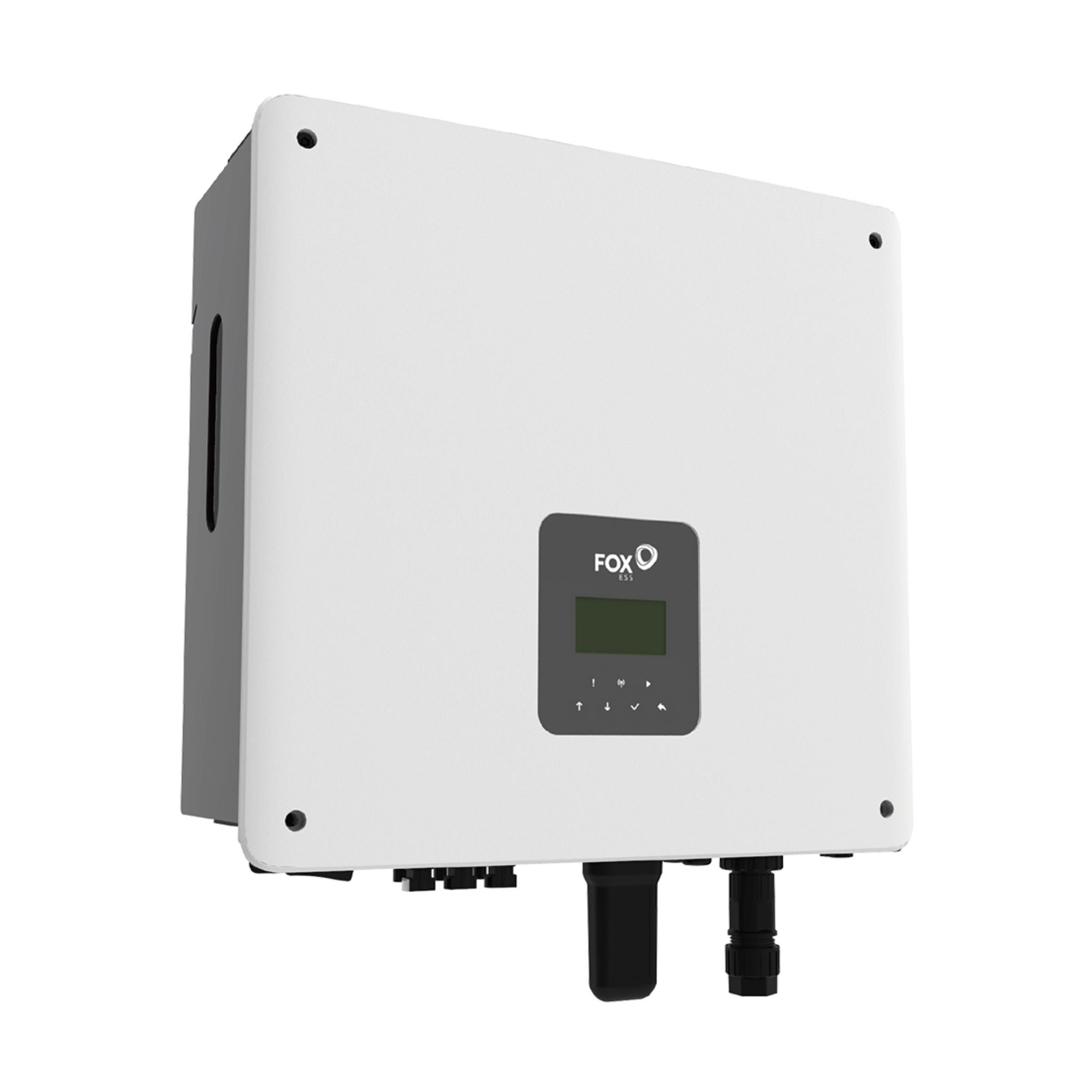

Fox H1 3.0kW Hybrid Inverter G2 – High-Efficiency Energy Management

The Fox H1 3.0kW Hybrid Inverter G2 is a high-performance hybrid inverter designed to maximize solar energy utilization and battery storage efficiency. Built for reliability and intelligent energy management, this next-generation inverter seamlessly integrates with solar panels and battery storage systems, offering homeowners and businesses greater energy independence and reduced reliance on the grid.

Key Features

• 3,000W Rated Power – Ideal for residential and small-scale commercial applications
• Wide MPPT Voltage Range (80V – 550V) – Ensures optimal solar harvesting in varying sunlight conditions
• High Efficiency (97%) – Maximizes energy conversion to reduce waste and increase savings
• Battery Compatibility – Supports energy storage for greater flexibility and backup power
• Dual MPPT Trackers – Enhances system performance by optimizing power output from multiple solar panel strings
• Advanced Protection Features – Includes integrated DC switch for safety and system longevity

Technical Specifications:

• Rated Power: 3,000 W
• Min PPT Voltage: 80 V
• Max PPT Voltage: 550 V
• DC Startup Voltage: 75 V
• DC Shutdown Voltage: 75 V
• Max Input Voltage: 600 V
• Max DC Power: 4,500 W
• Max AC Power (5 Minutes): 3,000 W
• Surge AC Power (1 Second): 3,301 W
• Max DC Current: 32 A
• Max DC Inputs: 2
• Has DC Fuses: No
• Connector Type: MC4
• Included Connectors: 4
• Euro Efficiency: 97%
• Transformer: None
• MPPT Quantity: 2
• Integrated DC Switch: Yes
• Warranty: 5 Years
• Supplier Part No: FE-H1-3.0-G2
• Weight: 22 kg


Applications

• Residential solar systems – Ideal for homeowners looking to integrate solar panels with battery storage
• Small commercial setups – Suitable for businesses seeking to optimize energy consumption
• Off-grid and backup power solutions – Helps maintain power supply during grid outages
• Hybrid energy systems – Can be used in combination with other power sources such as wind or backup generators

What’s Inside the Box?

• Fox H1 3.0kW Hybrid Inverter G2
• CT Clamps
• WiFi Stick
• User Manual and Installation Guide

Important Note

A meter will be required if the distance between the inverter and the incoming power connection point is greater than 30 meters. CT Clamps and a WiFi stick are included in the box. If another generator source (such as PV, wind, or other) is present, a second CT will be required.

Compatibility

The Fox H1 3.0kW Hybrid Inverter G2 is compatible with the following energy storage systems:

• ECS2900 – Requires 1 Master + 1 Slave Minimum, supports up to 6 Slaves Maximum
• ECS4100 – Requires 1 Master + 1 Slave Minimum, supports up to 6 Slaves Maximum
• ECS4300 – Requires 1 Master + 1 Slave Minimum, supports up to 6 Slaves Maximum
• ECS4800 – Requires 1 Master + 1 Slave Minimum, supports up to 6 Slaves Maximum
• HV2600 – Requires 1 BMS + 2 HV2600 Minimum, supports up to 7 Maximum

This ensures seamless integration with high-performance battery storage solutions for efficient energy management.

Installation Requirements:

To ensure safe operation and compliance with local regulations, this product must be installed by a certified electrician or solar installer.

Disclaimer:

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
