Description

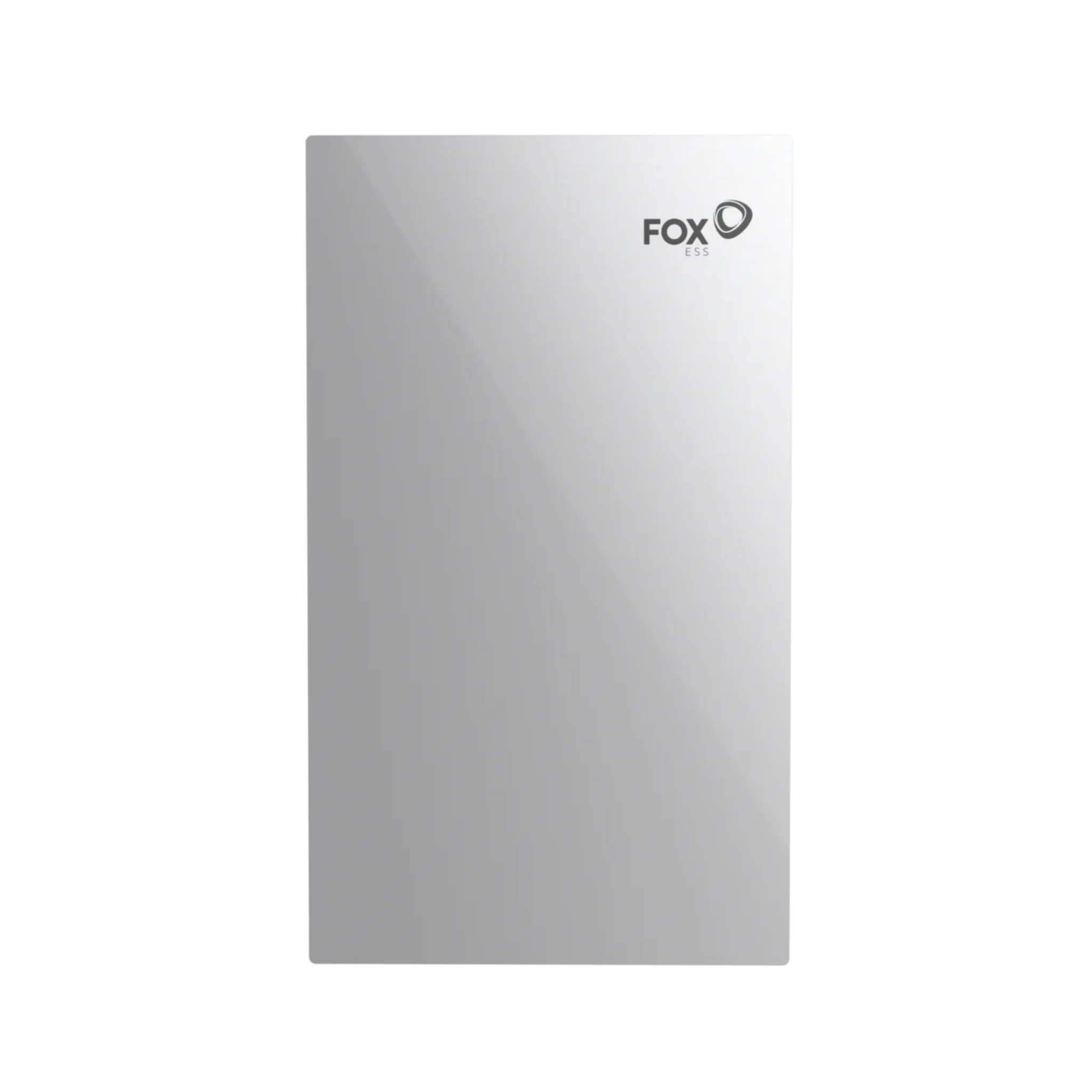

Fox ESS Evo Series 8.0kW with 10.24kWh

The Fox ESS Evo Series 8.0kW is an advanced all-in-one hybrid inverter and battery system that delivers powerful performance, intelligent energy management, and reliable energy storage. Designed for residential and light commercial applications, it enables users to maximize solar self-consumption, store excess energy, and achieve greater energy independence.

With 225% PV oversizing capability, triple MPPTs, and a fully integrated 10.24kWh LFP battery, this robust IP66-rated system provides high efficiency, flexibility, and long-term durability in a sleek, compact design.

Key Features

• 8.0kW Hybrid Inverter with Triple MPPT: Enhanced optimization for multiple PV strings and orientations

• 225% PV Oversizing Capability: Capture more energy from larger PV arrays

• Integrated 10.24kWh LFP Battery: Safe and efficient energy storage with high depth of discharge

• Scalable Design: Expandable up to 30.72kWh by connecting additional battery units

• High Efficiency: Up to 95% Depth of Discharge (DoD) with excellent round-trip efficiency

• Advanced EPS Function: 200% overload capacity for seamless critical load backup

• Integrated Wi-Fi: Simplified connectivity and real-time monitoring without external dongles

• Smart Export Limitation: Supports CT/Meter/DRM0/ESTOP for grid compliance

• Rugged IP66 Enclosure: Ideal for both indoor and outdoor installations

• Enhanced Safety Features: Built-in battery warm-up and integrated fire suppression system

Specifications

• Supplier Part No: EVO10-8H

• Rated Power: 8,000 W

• MPPT Quantity: 3

• PV Oversizing Ratio: Up to 225%

• Startup Voltage: 80 V

• Max Input Current (Imp/Isc): 20 A / 25 A

• Display: LCD Screen with Magnetic Cover

• EPS Capability: 200% Overload

• Export Limitation: CT / Meter / DRM0 / ESTOP

• Integrated Communication: Wi-Fi (No Dongle Required)

• Parallel Operation: Up to 3 Units

• Protection Level: IP66

Battery System:

• Integrated Capacity: 10.24 kWh (LFP)

• Scalable Capacity: Up to 30.72 kWh

• Depth of Discharge (DoD): 95%

• Max Charge Rate: 10 kW per unit

• Built-in Battery Warm-Up: Yes

• Fire Suppression: Integrated

• Round-Trip Efficiency: High (>90%)

• Protection Level: IP66

• Weight: 115 kg

Applications

• Residential hybrid solar systems

• Energy storage and backup power

• Grid-tied systems with export limitation

• Scalable energy storage for high-demand users

What’s Included in the Box

• 1 × Fox ESS Evo Series 8.0kW Hybrid Inverter

• 1 × Integrated 10.24kWh LFP Battery Module

• 1 × Integrated Wi-Fi Module

• Installation accessories and user manual
