Description

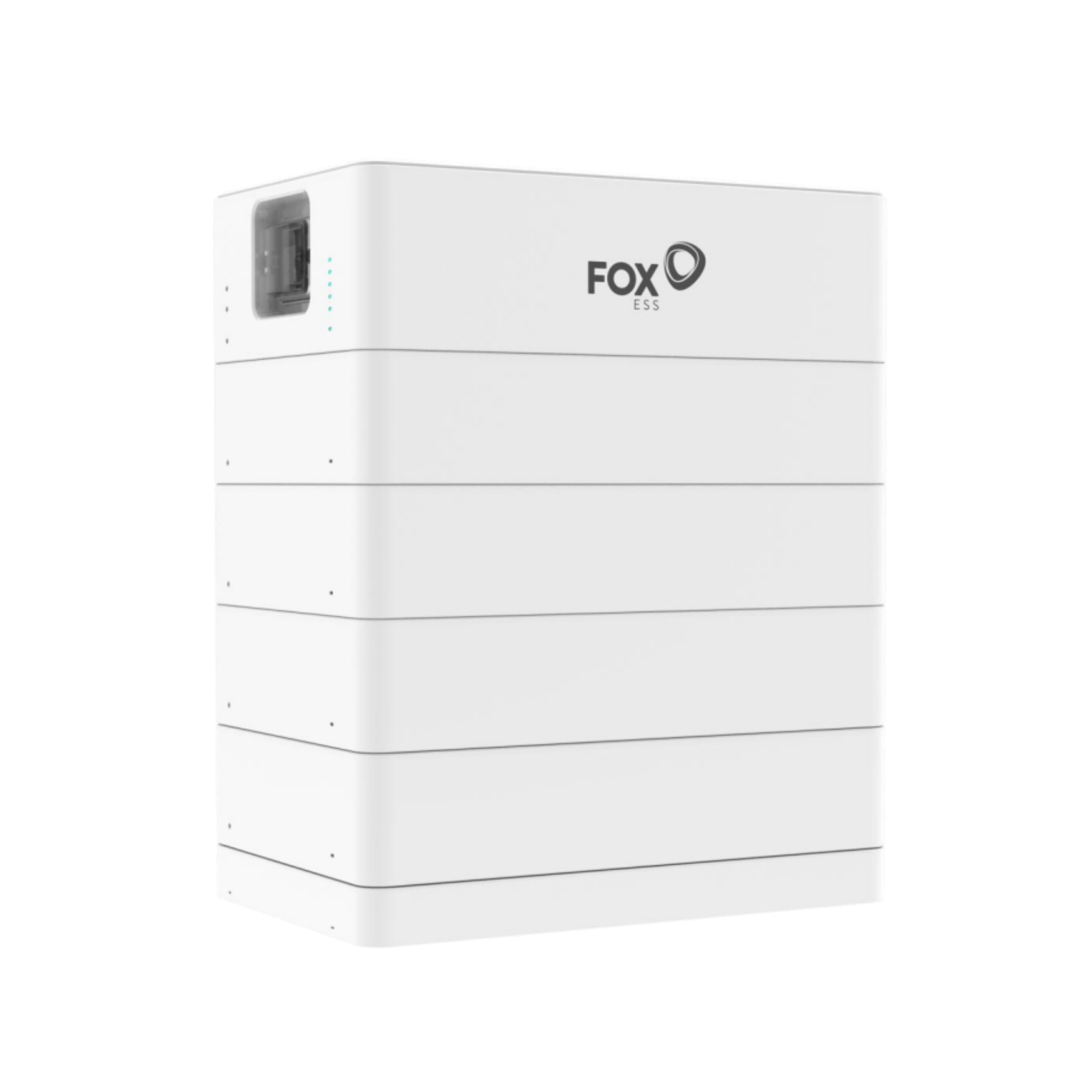

Fox ESS CQ7 High Voltage Battery Storage System

The Fox ESS CQ7 is a high-performance, scalable high-voltage battery storage solution designed for residential and commercial energy storage applications. Built using safe and reliable LiFePO₄ (LFP) battery technology, the CQ7 combines high efficiency, flexible expansion capability, and simple plug-and-play installation to help maximise self-consumption and energy independence.

Key Features

• Modular Design: A scalable high-voltage battery storage system that can grow with your energy needs.
• High Expandability: Starts at 14.04kWh and can be expanded up to 98.28kWh by connecting up to 14 modules in series.
• Safe and Reliable Chemistry: Utilises LiFePO₄ (LFP) battery technology for enhanced safety and longevity.
• Deep Discharge Capability: Offers 90% Depth of Discharge (DoD) for maximum usable energy capacity.
• High Round-Trip Efficiency: Achieves over 95% round-trip efficiency, minimising energy loss.
• Easy Installation: Features a plug-and-play design for rapid and straightforward deployment.
• Durable Enclosure: IP65 rated for robust protection against dust and water, suitable for indoor and outdoor use.
• Advanced Connectivity: Integrated CAN communication interface for seamless system integration.

Specifications

• Type of Product: Battery Module
• Dimensions: Length: 0.8 m
• Weight: 52.2 kg
• Battery Chemistry: LiFePO₄ (LFP)
• Capacity Range: 14.04kWh to 98.28kWh
• Depth of Discharge (DoD): 90%
• Round-Trip Efficiency: >95%
• Ingress Protection: IP65
• Communication: CAN

Applications

This battery storage system is ideal for residential and commercial applications seeking to enhance energy independence and maximise self-consumption. It is suitable for various project sizes due to its modular and expandable design, providing a reliable power solution for backup power or energy management strategies.

What's Included in the Box

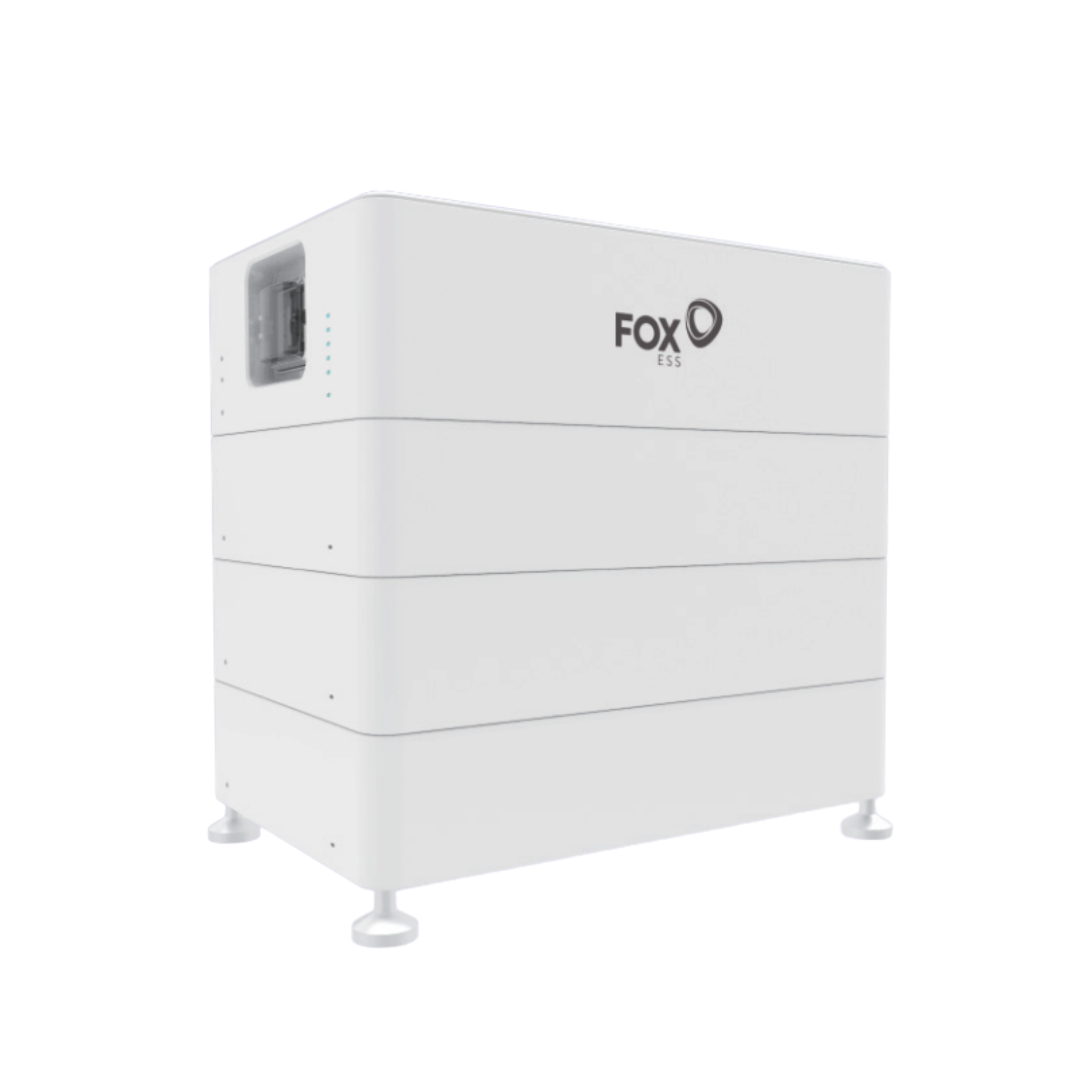

• 1x Fox ESS CQ7 High Voltage 7.02kWh Master Battery

The number of Fox ESS CQ7 battery modules that can be installed depends on the compatible Fox ESS inverter being used.

How CQ7 Battery Stacks Are Configured

Each CQ7 battery stack requires 1 × CQ7-M Master battery, with additional CQ7-S Slave batteries added to achieve the required storage capacity.

For example:

• 2-battery stack = 1 × Master + 1 × Slave

• 3-battery stack = 1 × Master + 2 × Slaves

• 4-battery stack = 1 × Master + 3 × Slaves

Multiple Battery Stacks

The H3 Pro supports up to 2 separate battery stacks, while the H3 Plus supports up to 3 stacks.

Each individual stack requires its own CQ7-M Master battery.

For larger configurations, the optional Fox ESS battery base may also be required to arrange the modules across two columns, depending on the final system layout.

Why Buy This Product

• High Energy Efficiency: With over 95% round-trip efficiency, this system minimises energy wastage, ensuring you get the most from your stored power.
• Stylish Design: N/A
• Robust Durability: The IP65-rated enclosure offers excellent protection against environmental factors, ensuring reliable operation indoors and outdoors.
• Sustainability: Utilising LiFePO₄ technology, this system provides a safe, long-lasting, and environmentally conscious energy storage solution.
• Long Warranty: Backed by comprehensive warranty terms, offering peace of mind and reassurance in your investment.

The Fox ESS CQ7 is engineered for flexibility and performance, offering a dependable high-voltage battery solution for modern energy needs.

Documents

• Data Sheet: Data Sheet Fox Ess CQ7
• Installation Guide / User Manual: User Manual Fox Ess CQ7
• Warranty: Warranty Fox Ess V3.1 - DE (German)
• Warranty: Warranty Fox Ess V3.1 - EN
• -- Fox Ess CQ7-M - EN: -- Fox Ess CQ7-M - EN
• -- Fox Ess CQ7-S - EN: -- Fox Ess CQ7-S - EN
• Safety Transport & Handling Documentation SDS Fox Ess CQ7-M - EN: Safety Transport & Handling Documentation SDS Fox Ess CQ7-M - EN
• Safety Transport & Handling Documentation SDS Fox Ess CQ7-S - EN: Safety Transport & Handling Documentation SDS Fox Ess CQ7-S - EN
