Description

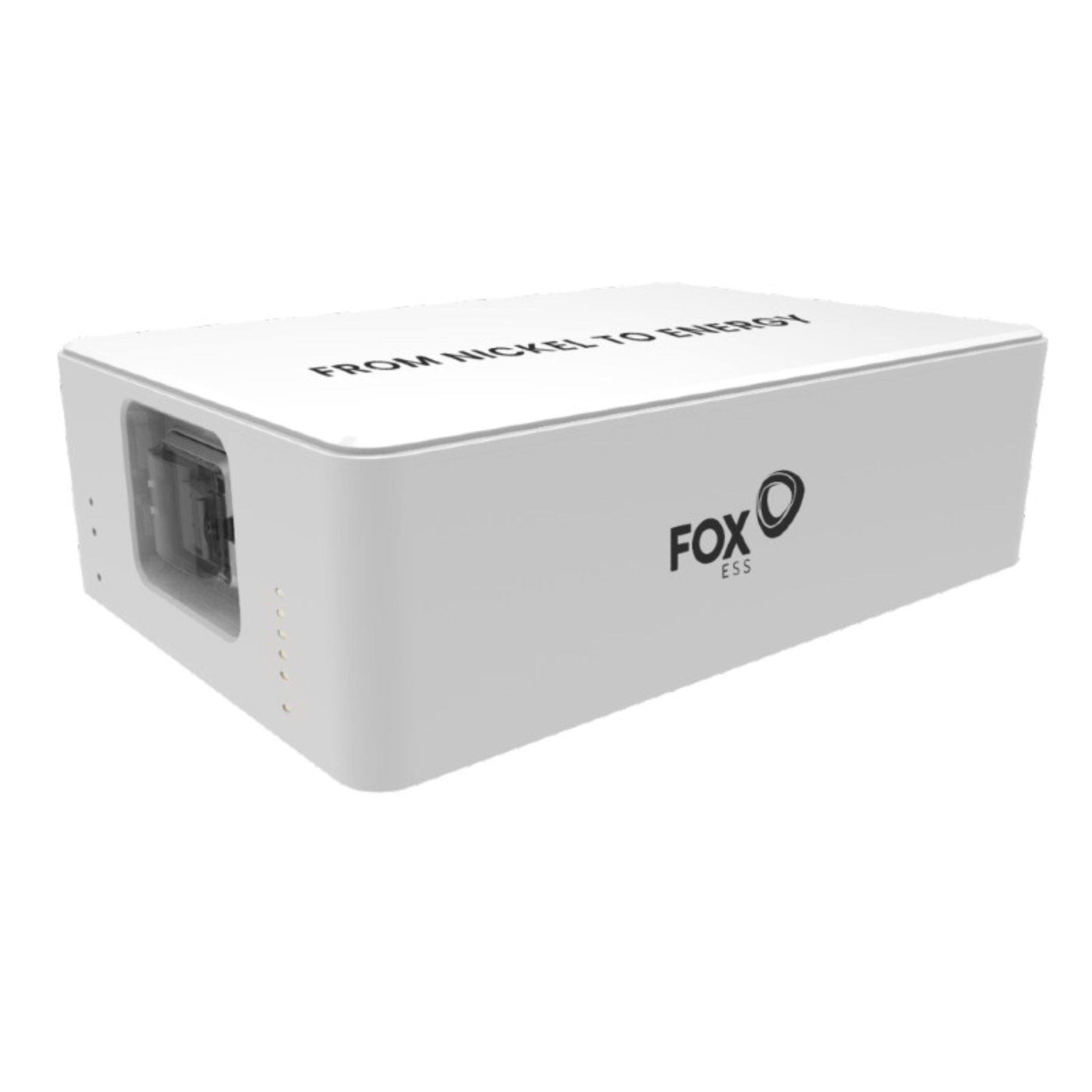

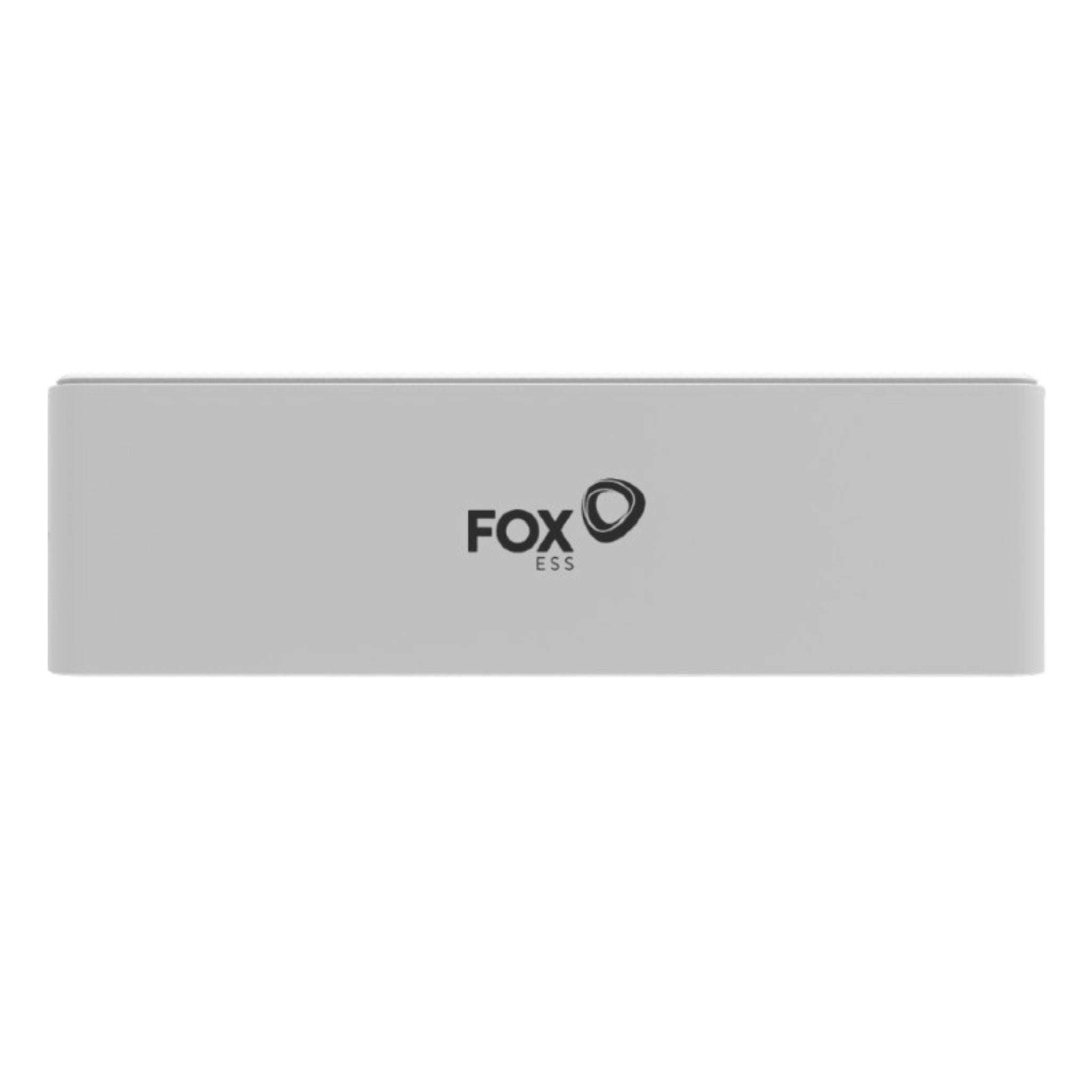

Fox ECS 2.88kWh HV Battery (Master) V2.0 Connector A

The Fox ECS 2.88kWh HV Battery (Master) V2.0 – Connector A is a high-performance lithium-ion battery designed for scalable energy storage solutions. Acting as the control module in a battery stack, this master unit ensures efficient energy distribution and seamless system integration. With a 2.88kWh capacity and high-voltage operation, it is an excellent choice for residential and commercial energy storage applications.

Key Features

• Master Battery Unit – Essential for managing and controlling a battery stack
• Scalable System – Supports expansion with up to 6 additional slave batteries
• High Voltage & High Efficiency – Provides stable and optimized energy performance
• Compact & Space-Saving Design – Ideal for various installation environments
• Long Cycle Life – Engineered for durability and extended service life

Technical Specifications

• Nominal Energy: 2,880 Wh
• Depth of Discharge: 90.00%
• Voltage: 52 V
• Continuous Discharge Rate (Normal Use): 1,440 W
• Maximum Discharge Rate (5 Minutes): 2,880 W
• Surge Discharge Rate (15 Seconds): 3,000 W
• Maximum Charge Rate (5 Minutes): 2,880 W
• Supplier Part No: FE-HV-ECM-2900-4A2C
• Weight: 37.95 kg
• Battery Type: Lithium-Ion

Applications

• Residential Solar Storage – Stores surplus solar power for use during peak demand or low sunlight hours
• Commercial Power Backup – Ensures uninterrupted operation of critical equipment during grid outages
• Off-Grid Systems – Supports complete energy independence with reliable solar battery storage

What’s Included in the Box?

• Fox ECS 2.88kWh HV Battery Master V2 – Connector A
• User Manual
• Installation Guide

Important Notes

• This battery must be used in a stack with at least one slave module (minimum of two batteries required).
• A maximum of seven modules can be stacked together (1 Master + 6 Slaves).
• If adding battery modules to an existing stack, compatibility must be confirmed with your technical support provider. Please provide a photo of your current battery stack via the portal for verification.
• When expanding the system, ensure the new battery matches the connector type of your existing setup. This is the Connector A version of the ECS battery.

Installation Requirement: This battery must be installed by a qualified electrician following local wiring regulations and safety standards. Incorrect installation may cause system issues. Solareon UK is not responsible for malfunctions caused by improper installation.

Why Choose the Fox ECS 2.88kWh HV Battery Master V2 Connector A?

The Fox ECS 2.88kWh HV Battery Master V2 – Connector A is a reliable, high-efficiency energy storage solution designed for scalability. Whether used for solar self-consumption, backup power, or off-grid applications, it delivers excellent performance, longevity, and seamless system integration.
