Description

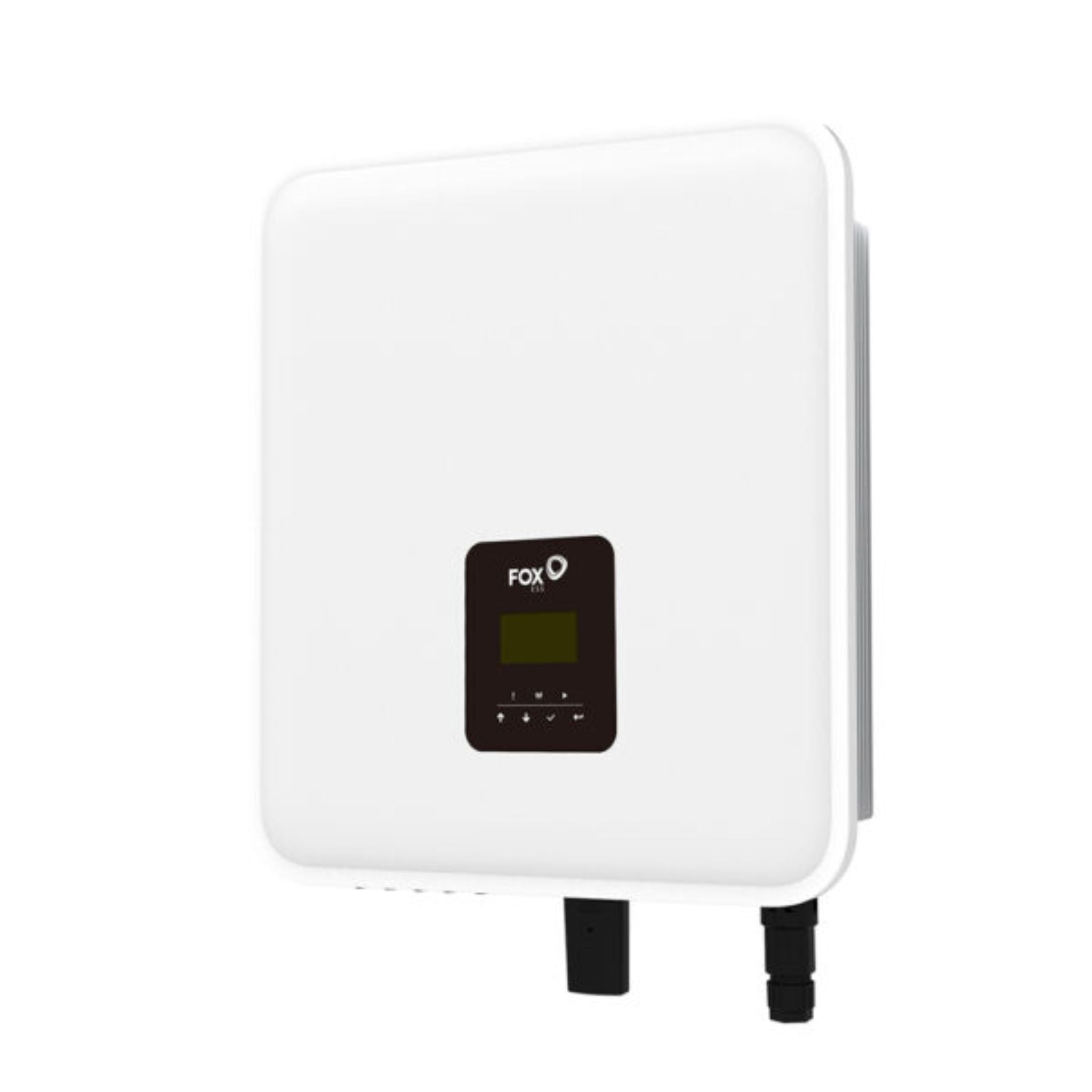

Fox 9kW K Series Single Phase Hybrid Inverter

The Fox 9kW K Series Single Phase Hybrid Inverter is an advanced solution for residential and commercial solar systems that require high performance, reliability, and scalability. With a rated power of 9,000 W and four MPPT channels, it is designed to optimize energy production across multiple solar arrays, even in conditions of partial shading or varied orientations. The inverter boasts a high Euro efficiency of 97.4%, ensuring minimal energy loss and maximum output. Its IP65 rating provides robust protection against environmental factors, making it perfect for outdoor installations.

Key Features

• Rated Power: 9,000 W – Provides ample power for both residential and commercial energy systems
• Quad MPPT Technology: Four MPPT channels allow for flexible array configuration and optimal energy harvesting, even with partial shading or multiple roof orientations
• IP65 Rated: Fully weatherproof and suitable for installation in outdoor environments
• High Efficiency: Euro efficiency of 97.4%, ensuring that your solar power system operates at maximum efficiency
• Integrated DC Switch: Provides added safety and control over the system by allowing easy DC disconnect
• Expandable Battery Capacity: Designed for easy integration with compatible energy storage systems, enabling future expansion of your solar energy storage needs
• Remote Monitoring: Monitor system performance via a web portal or smartphone app for real-time tracking and diagnostics
• Warranty: 5-year warranty for peace of mind and long-term reliability

Technical Specifications

• Rated Power: 9,000 W
• Min PPT Voltage: 80 V
• Max PPT Voltage: 500 V
• DC Startup Voltage: 75 V
• DC Shutdown Voltage: 75 V
• Max Input Voltage: 600 V
• Max DC Power: 13,500 W
• Max AC Power (5 Minutes): 9,000 W
• Surge AC Power (1 Second): 9,900 W
• Max DC Current: 64 A
• Max DC Inputs: 4
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 8
• Euro Efficiency: 97.4%
• Transformer: None
• MPPT Quantity: 4
• Has Integrated DC Switch: Yes
• Warranty: 5 years
• Supplier Part No: FE-KH1-9.0
• Weight: 29 kg

Compatible with

• ECS2900 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• ECS4100 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• ECS4300 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• ECS4800 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• HV2600 (1 BMS + 2 HV2600 Minimum, up to 8 Maximum)

Applications

• Residential Solar Systems – Perfect for homes with higher energy needs and complex roof structures, where maximizing solar production is essential
• Commercial Solar Solutions – Designed for small to medium commercial installations requiring higher power output and flexibility
• Off-Grid Systems – Ideal for off-grid solar energy systems, ensuring reliable power management and scalability
• Energy Storage Systems – Easily integrates with battery storage systems to provide consistent power during the night or during grid outages

What’s Included in the Box?

• Fox 9kW K Series Hybrid Inverter
• CT Clamps and Meter
• User Manual
• Installation Guide

Important Notes

• This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
• Solareon UK will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Why Choose the Fox 9kW K Series Hybrid Inverter?

The Fox 9kW K Series Hybrid Inverter offers robust performance, versatility, and high-efficiency energy conversion, making it a top choice for homeowners and businesses looking to optimize their solar energy systems. Its quad MPPT technology, IP65 rating, and ability to expand battery storage make it perfect for those looking to maximize energy output in varying conditions. It also features integrated monitoring capabilities to track performance and ensure optimal operation.

Disclaimer:

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
