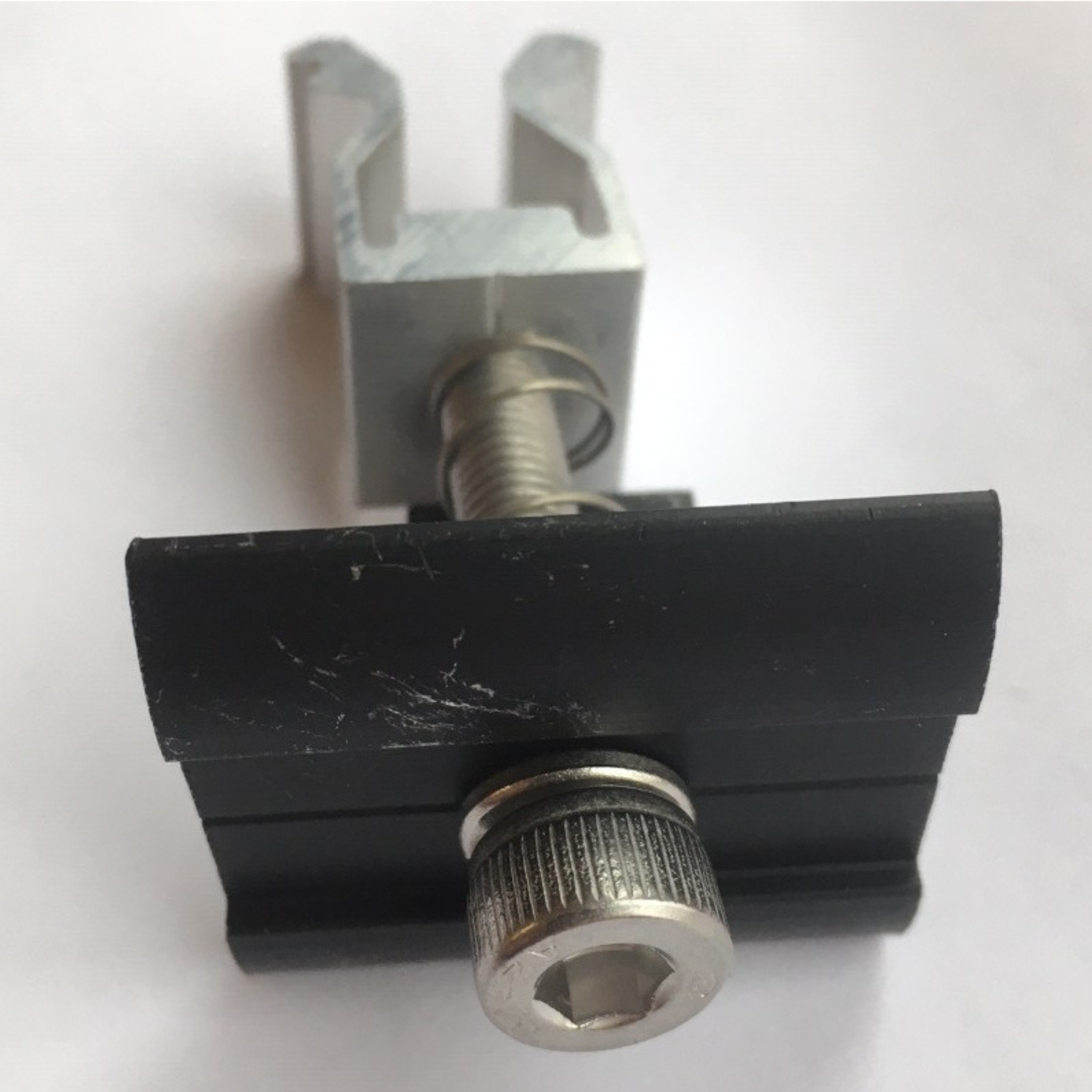

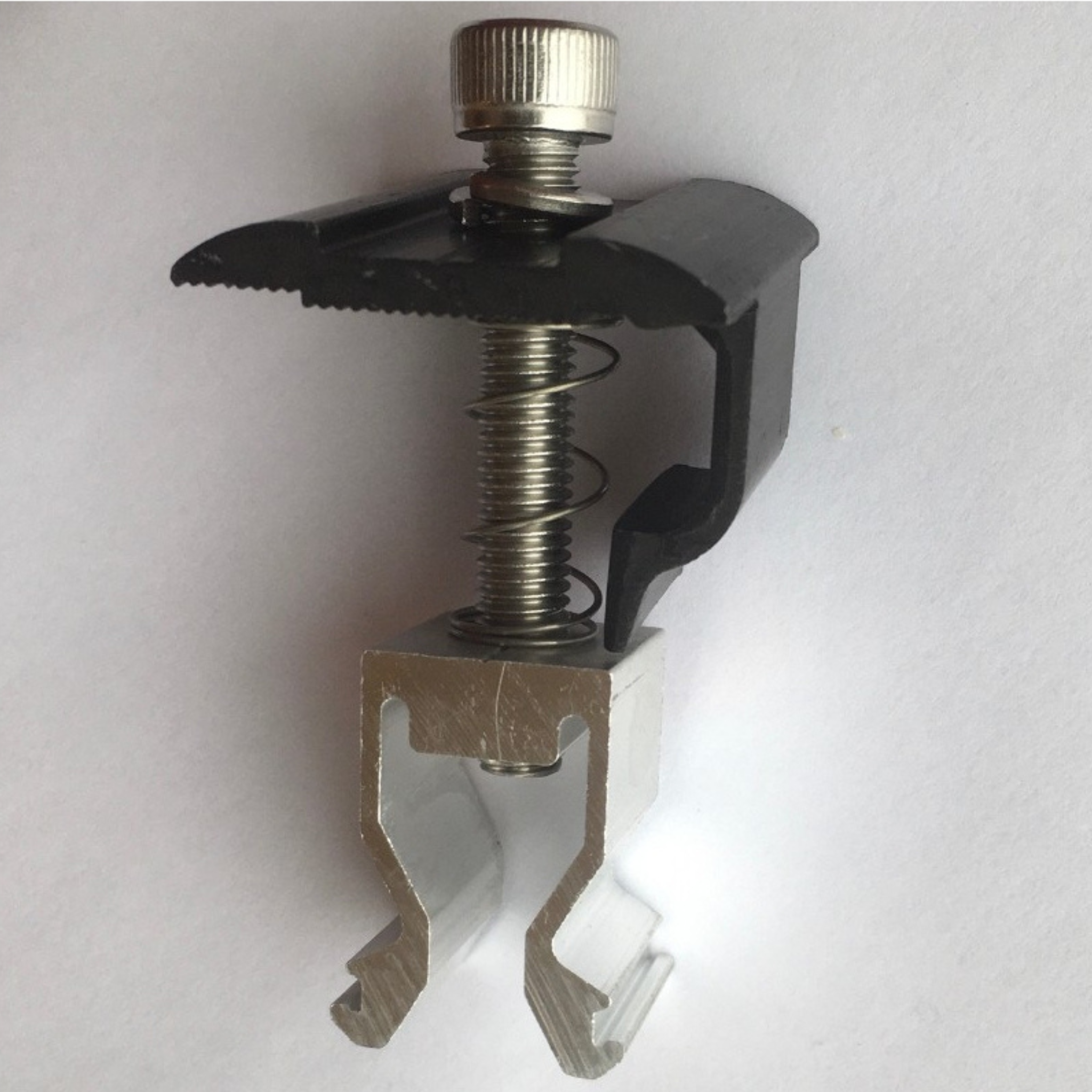

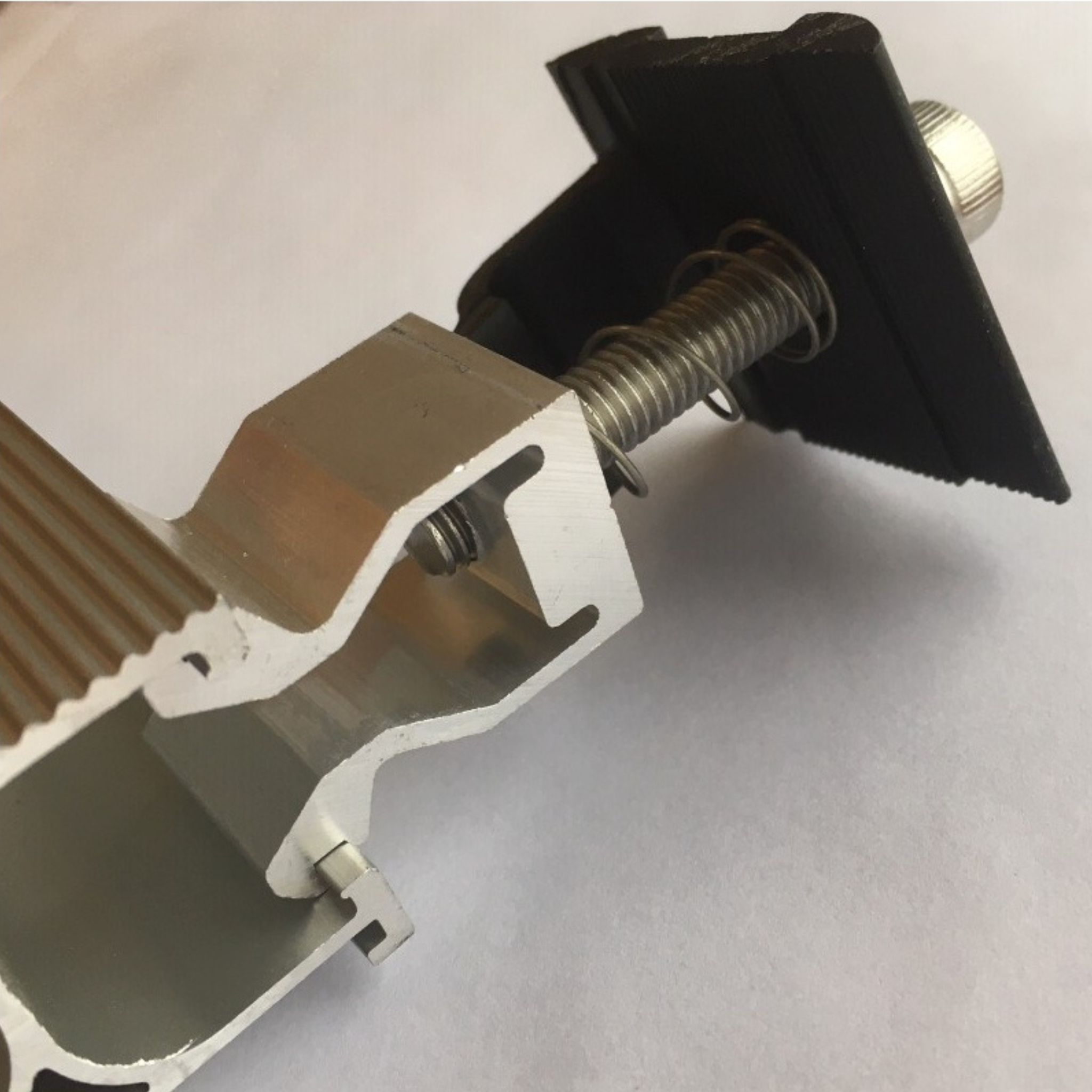

Fastensol Black Universal Clamp for 30–46mm Panels

Mounting solar panels just got even simpler with the Fastensol Black Universal Clamp. This spring-loaded clamp is designed for maximum versatility, fitting any framed module between 30mm and 46mm in thickness. Thanks to its clever dual-purpose design, it functions as both a mid clamp and end clamp—simply rotate the head 90° to switch between either configuration.

Engineered for reliability and ease of installation, the Fastensol Universal Clamp provides a secure, clean, and professional mounting finish for residential, commercial, and utility-scale solar projects.

Key Features

• Universal Fit: Accommodates all solar panels with a thickness range of 30–46mm.

• Dual Functionality: Serves as both a mid and end clamp—no need for separate parts.

• Spring-Loaded Design: Simplifies installation and ensures a firm, consistent grip.

• Durable Construction: Made from high-quality materials with a sleek black finish for long-lasting performance and a professional appearance.

• Pre-Assembled: Ready to use, reducing installation time on-site.

• System Compatibility: Designed to integrate perfectly with the Fastensol GS Rail system.

Specifications

• Model: GS Universal Clamp

• Article No.: UC-GS

• Product Code: F-UC-B

• Dimensions: 40 × 40 mm

• Weight: 0.070 kg

• Colour: Mill or Black

• Pre-Assembled: Yes

• Function: Mid and End Clamp

• Clamping Range: 30–46 mm (Framed Modules)

• Drive Type: Hexagon Socket M8

• Max Fastening Torque: 14.5 Nm

• Compatible Rail System: GS Rail

• Small Carton: 80 units

• Large Carton: 320 units

Applications

• Ideal for residential, commercial, and industrial solar PV installations requiring a secure and flexible panel mounting solution compatible with the Fastensol GS Rail system.

Why Choose This Product

• Streamlined Installation: Reduces the number of components and simplifies setup.

• Cost-Effective Solution: One product performs two roles—mid and end clamp.

• Professional Finish: The black anodised version blends seamlessly with modern solar arrays.

• Reliable Performance: Built to handle varying panel thicknesses with a secure fastening torque.

• Proven Quality: Manufactured by Fastensol, a trusted name in solar mounting systems.

What’s Included in the Box

• 1 × Fastensol Black Universal Clamp (pre-assembled)

• 1 × Integrated spring mechanism

• 1 × M8 hexagon socket bolt

• 1 × Fastening washer

A versatile, spring-loaded universal clamp from Fastensol designed for framed modules between 30–46mm. Functions as both a mid and end clamp with quick rotation and effortless installation.
