Description

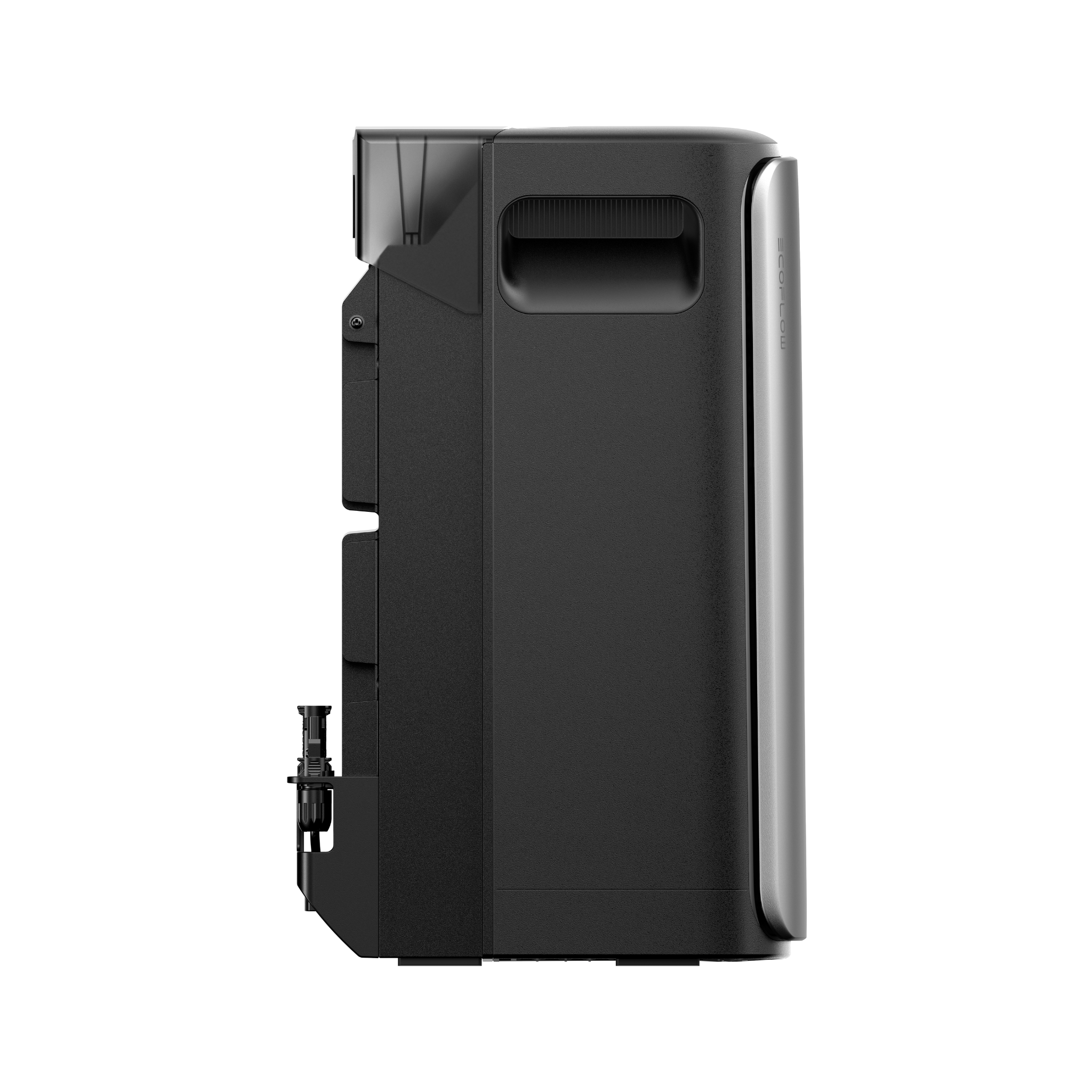

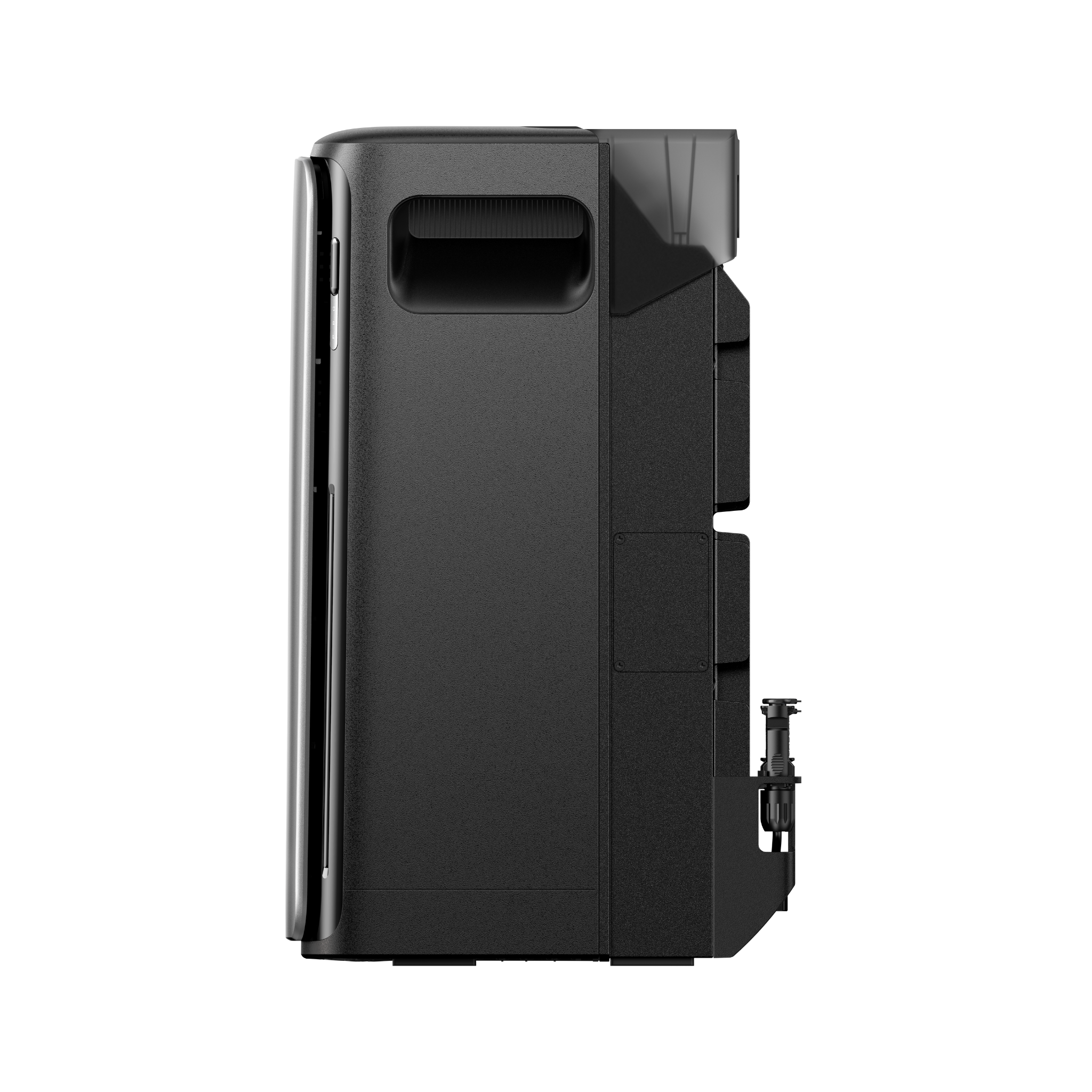

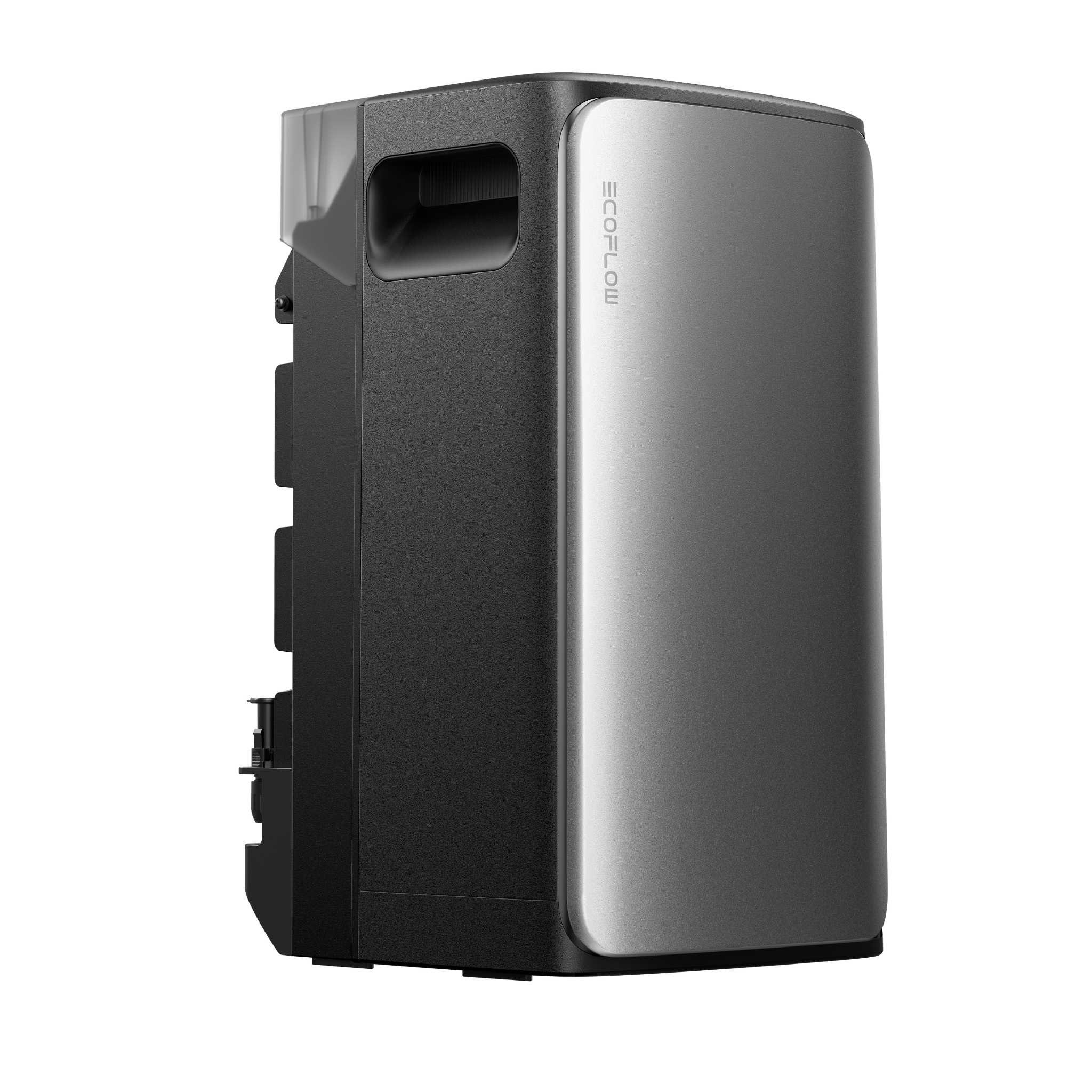

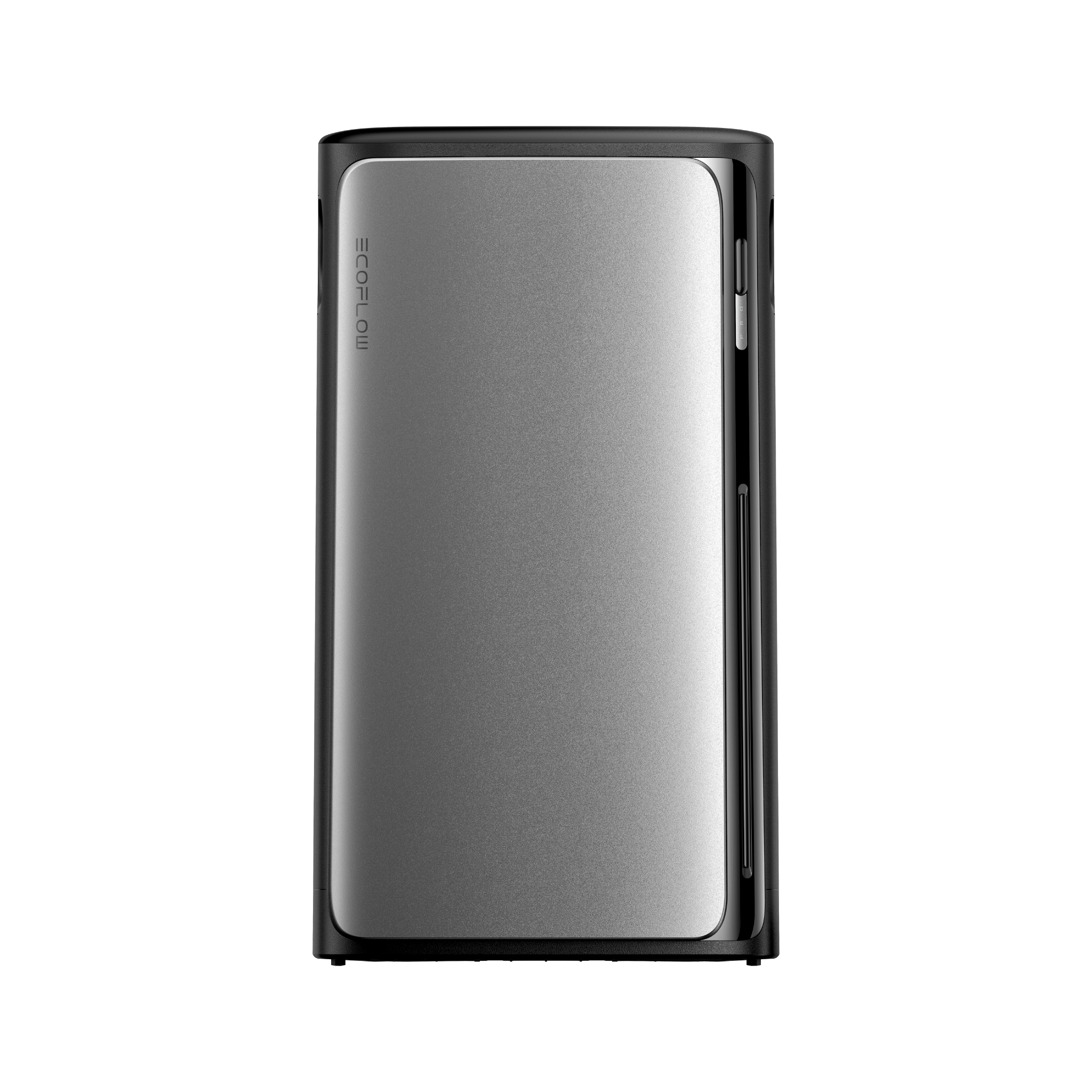

EcoFlow STREAM Max 800W with 1.92kWh Battery and 2 MPPT

The EcoFlow STREAM Max 800W is a high-performance solar battery system designed for maximum flexibility and energy efficiency. Featuring a robust 1.92kWh LiFePO₄ battery, two independent MPPT inputs, and IP65-rated weather protection, it is built for both indoor and outdoor use.

This unit offers a seamless, plug-and-play setup, making it ideal for residential, commercial, and off-grid applications. With smart monitoring via the EcoFlow app and fanless natural convection cooling, it delivers silent, reliable operation while ensuring optimal solar energy harvest.

Key Features

• High-Capacity Storage: 1.92kWh LiFePO₄ battery with a long cycle life of up to 6,000 cycles.

• Triple MPPT Inputs: Optimises power harvest from up to three separate solar strings.

• Multiple Output Options: AC output, bypass mode, and parallel operation for scalable systems.

• Weatherproof Design: IP65 rating for outdoor or indoor installations.

• Quiet Cooling: Fanless natural convection operation.

• Smart Control: Built-in Wi-Fi and Bluetooth for monitoring via the EcoFlow app.

Applications

• Residential solar battery storage

• Off-grid cabins and holiday homes

• Commercial and agricultural power systems

• Emergency backup power supply

• Energy storage for load shifting and self-consumption

• Plug-in play

Specifications

General Info

• Model: EF-EA-HD-M2K-600, EF-EA-HD-M2K-800

• Dimensions: 255 × 284 × 458 mm

• Net Weight: 22.0 kg

• Typology: Isolated

• IP Rating: IP65

• Pollution Degree: PD3

• OVC Category: DC: II, AC: III

• Environmental Category: Outdoor / Indoor

• Cooling Method: Natural convection (no fans)

Battery Info

• Rated Capacity: 1.92kWh

• Rated Voltage: 19.2V DC

• Cycle Life: 6,000 cycles

• Max Charging Power: 1,050W

• Max Discharging Power: 1,200W

• Cell Chemistry: LFP (LiFePO₄)

PV Terminal (DC)

• Number of MPPTs: 2

• MPPT Voltage Range: 15V – 60V DC

• Max Input Power: 1,000W (500W per MPPT)

• Max Input Voltage: 60V DC

• Max Input Current: 2 × 14A

• Max Short Circuit Current: 2 × 20A

Grid Terminal (AC)

• Rated Voltage/Frequency: 230V~, 50Hz

• Rated Output Power: 600W (EF-EA-HD-M2K-600) / 800W (EF-EA-HD-M2K-800)

• Rated Output Current: 2.61A (600W) / 3.48A (800W)

• Max Input Current: 10A

• Max Input Power: 2,300W

• Power Factor: 1 (–0.8 to +0.8)

AC Outlet (AC)

• Rated Voltage/Frequency: 230V~, 50Hz

• Max Output Power: 1,200W

• Rated Output Current: 5.22A

• Bypass Mode Max Output Current: 10A

• Max Input Power: 600W (M2K-600) / 800W (M2K-800)

• Max Input Current: 2.61A (600W) / 3.48A (800W)

Environment

• Operating Altitude: ≤ 4,000 m

• Operating Temperature: –20°C to 55°C

• Storage Temperature: –20°C to 55°C

• Relative Humidity: 5% – 95%

Features

• Communication: WLAN, Bluetooth

• Management: EcoFlow app

Why Buy This Product

• Efficient Dual MPPT Charging: Optimises power harvest from two independent solar inputs.

• Long-Lasting Battery: LiFePO₄ chemistry with up to 6,000 cycles.

• Flexible Power Output: Supports multiple usage modes for various energy needs.

• Weatherproof and Quiet: Suitable for outdoor use without noisy fans.

• Plug-and-Play Installation: Hassle-free setup, ideal for quick deployment.

• Smart Remote Control: Full system monitoring and management via the EcoFlow app.

• 10-Year Warranty: Long-term peace of mind from a brand known for quality and innovation.

What’s Included in the Box

• 1 × EcoFlow STREAM Max

• 4 × EcoFlow STREAM Solar Panel Extension Cable (2.95 m)

• 1 × EcoFlow STREAM AC Cable (1.5 m) / 1 × EcoFlow STREAM DIY Cable (1.5 m)

• 1 × PV Wrench

• 1 × Mounting Bracket

• 1 × Locking Bracket

• 4 × M4×8 Screws

• 2 × Expansion Screws with Anchors

Keep Generating Power in Low-Light Conditions

With advanced low-light capture technology, the STREAM Battery can draw energy even from overcast skies or during dusk, providing up to an extra hour of solar production each day compared to typical industry performance.

Smart Meter × Smart Plug: Zero Feed-in. All Solar, All Yours⁷
