Description

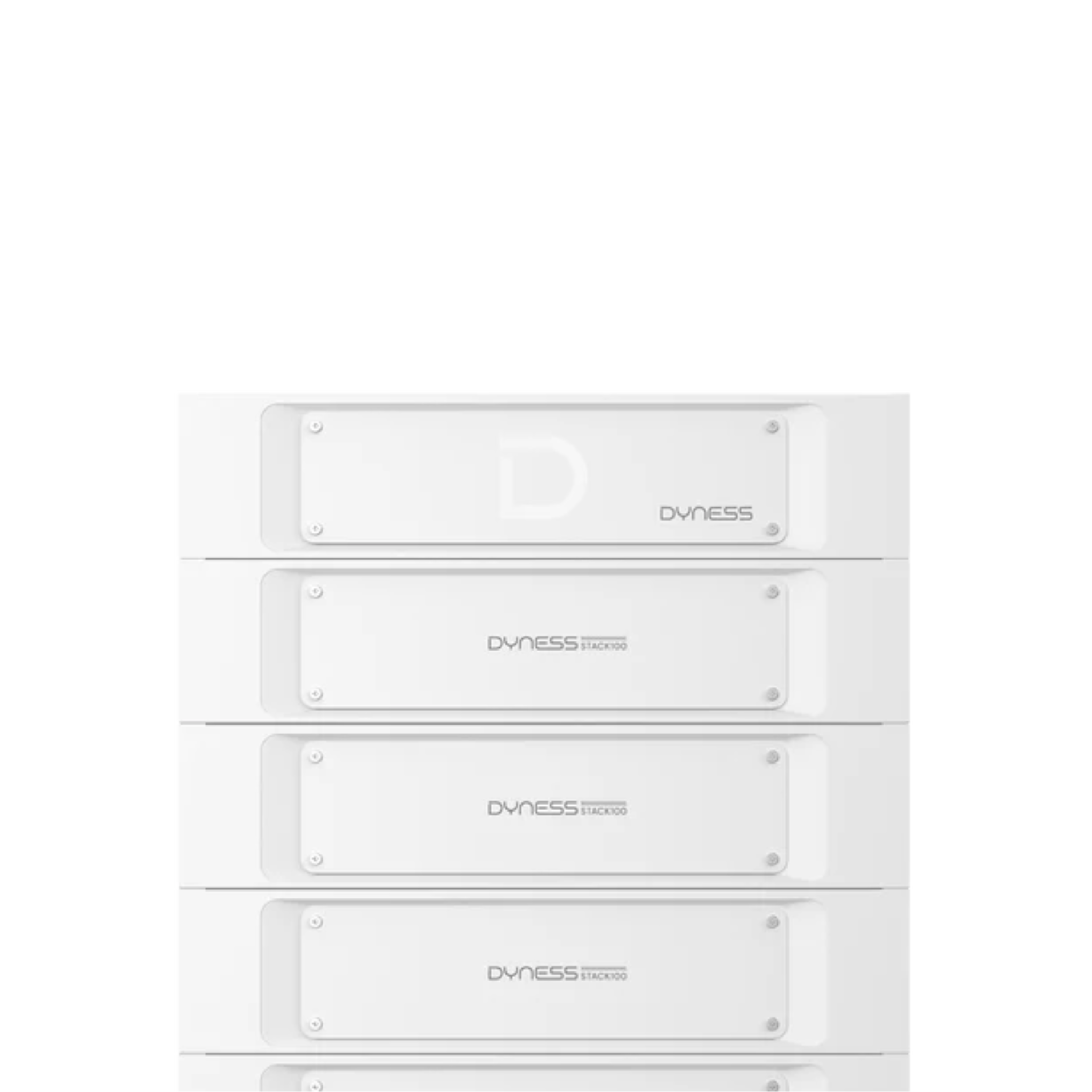

Dyness Stack100 PRO HV 5.12kWh High Voltage Lithium Battery Module

The Dyness Stack100 PRO HV 5.12kWh Battery Module is a premium high-voltage lithium-ion battery designed for residential, commercial, and industrial energy storage applications. Featuring a modular stacking design, the Stack100 PRO offers exceptional flexibility, allowing systems to be expanded from 15.36kWh up to 921kWh to meet growing energy demands. With advanced safety features, intelligent monitoring, and over 8,000 charge cycles, it delivers reliable long-term performance for solar self-consumption, backup power, and off-grid energy storage.

Key Features

• Modular & Scalable – Expand your storage capacity from 15.36kWh up to 921kWh with support for up to 12 clusters in parallel.
• Safe & Reliable – Six-layer protection system with IP66 protection, integrated aerosol fire extinguishing system, temperature sensors, and optional aerogel fire protection.

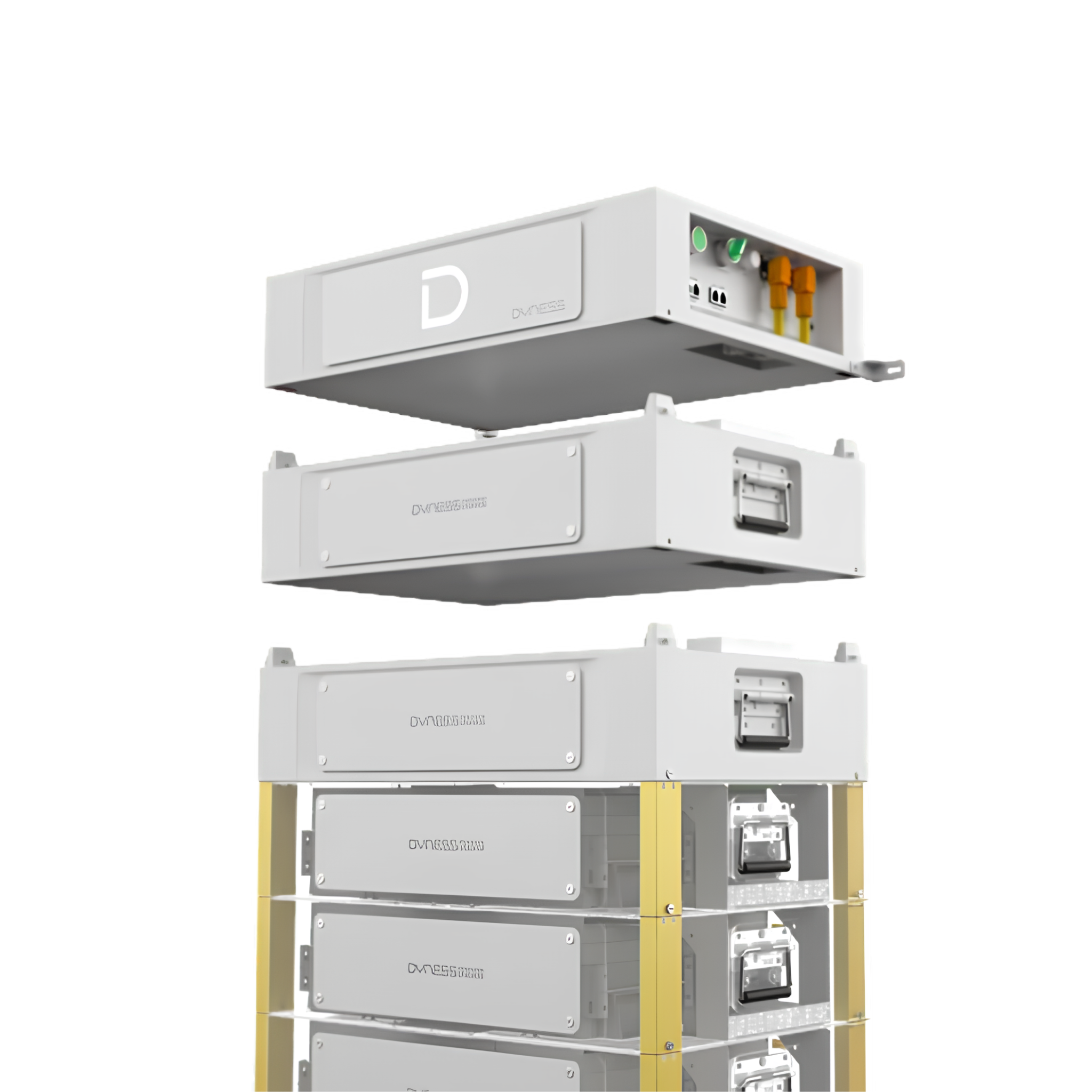

• Fast Installation – Innovative wireless stacking design enables a complete battery cluster to be installed in as little as 30 minutes.
• Intelligent Control – Integrated Wi-Fi module, mobile app connectivity, LED status interface, and real-time monitoring for easy system management.
• Durable & Cost-Effective – Designed for 8,000+ charge cycles, backed by a 10-year manufacturer's warranty, and delivers 95% usable capacity per module.
• Silent & Efficient – Natural convection cooling provides quiet operation without the need for fans, making it ideal for homes and commercial buildings.

Specifications

• Battery Type: Lithium-Ion
• Nominal Energy: 5.12kWh (5120Wh)
• Nominal Voltage: 51V
• Depth of Discharge (DoD): 95%
• Continuous Discharge Power (Normal Use): 2,560W
• Maximum Discharge Power (5 Minutes): 5,120W
• Surge Discharge Power (15 Seconds): 5,120W
• Maximum Charge Power (5 Minutes): 5,120W
• Weight: 55kg
• Cooling Method: Natural Convection (Fanless)
• Protection Rating: IP66
• Communication: Integrated Wi-Fi, LED Status Interface & App Monitoring
• Scalability: Expandable from 15.36kWh to 921kWh (up to 12 clusters in parallel)
• Cycle Life: Over 8,000 Charge Cycles
• Installation Method: Wireless Stackable Modular Design
• Warranty: 10 Years

Applications

The Dyness Stack100 PRO HV 5.12kWh Battery Module is ideal for:

• Residential solar PV energy storage systems
• Commercial and industrial energy storage projects
• Solar self-consumption optimisation
• Backup power and emergency power supply
• Peak shaving and demand management
• Off-grid and hybrid solar installations
• Scalable battery storage systems

What's Included in the Box

• 1 × Dyness Stack100 PRO HV 5.12kWh High Voltage Battery Module
• Installation guide
• User manual
• Warranty documentation

Why Buy This Product

The Dyness Stack100 PRO HV is engineered to deliver exceptional flexibility, safety, and long-term performance for modern energy storage systems. Its modular architecture allows your battery capacity to grow alongside your energy requirements, while the advanced IP66-rated enclosure, integrated fire protection system, and intelligent battery management provide outstanding reliability in demanding environments. With over 8,000 charge cycles, rapid wireless installation, and comprehensive real-time monitoring, the Stack100 PRO is an ideal choice for homeowners and businesses seeking a future-proof energy storage solution.

Documents

• Data Sheet: Data Sheet Dyness Stack 100 Pro EN
• Data Sheet: Data Sheet DYNESS STACK100 PRO DE (German)
• Installation Guide / User Manual: User Manual Dyness Stack100 Pro EN
• Installation Guide / User Manual: User Manual QSG DYNESS STACK100 PRO EN
• Certificate: Test Certificate ICE62040 Dyness Stack100 Pro EN
• Certificate: Test Certificate ICE62619 Dyness Stack100 Pro EN
• Certificate: Test Certificate IEC62477_62040 Dyness Stack100 Pro EN
• Certificate: Test Certificate REACH Dyness Stack100 Pro EN
• Certificate: Test Certificate RED Dyness Stack100 Pro EN
• Certificate: Test Certificate RoHS Dyness Stack100 Pro EN
• --: --
• Brochure Dyness C&I Loesungen - DE: Brochure Dyness C&I Loesungen - DE
• Brochure Dyness C&I Solutions - EN: Brochure Dyness C&I Solutions - EN
• Product Compatibility Dyness HV Batteries - EN: Product Compatibility Dyness HV Batteries - EN
• Safety Transport & Handling Documentation Dyness Stack100 Pro EN: Safety Transport & Handling Documentation Dyness Stack100 Pro EN
• Safety Transport & Handling Documentation Dyness Stack100 Pro EN: Safety Transport & Handling Documentation Dyness Stack100 Pro EN
• VDE 4105 AR Dyness Stack100 Pro EN: VDE 4105 AR Dyness Stack100 Pro EN

Disclaimer

This battery module must be installed by a qualified professional in accordance with the manufacturer's installation instructions and local electrical regulations. Compatibility with your inverter and battery management system should be confirmed prior to purchase. Product specifications are subject to change without prior notice by the manufacturer.

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer's official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
