Description

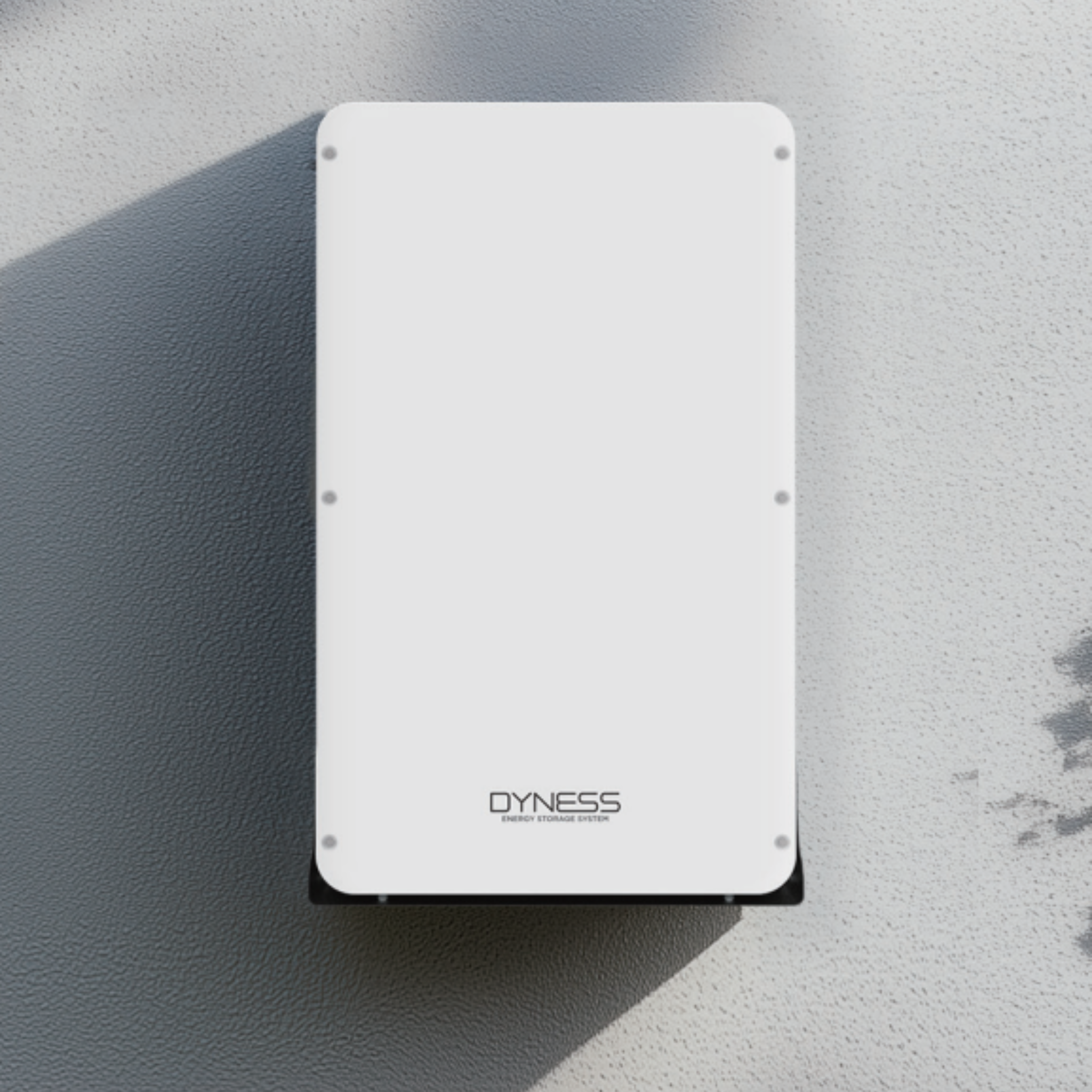

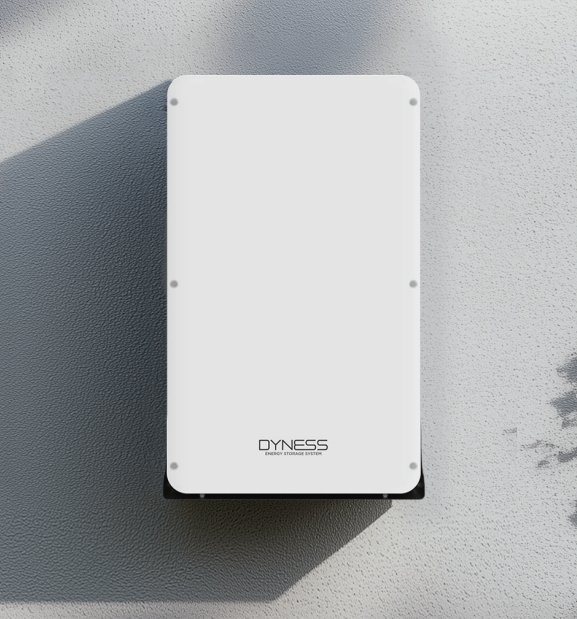

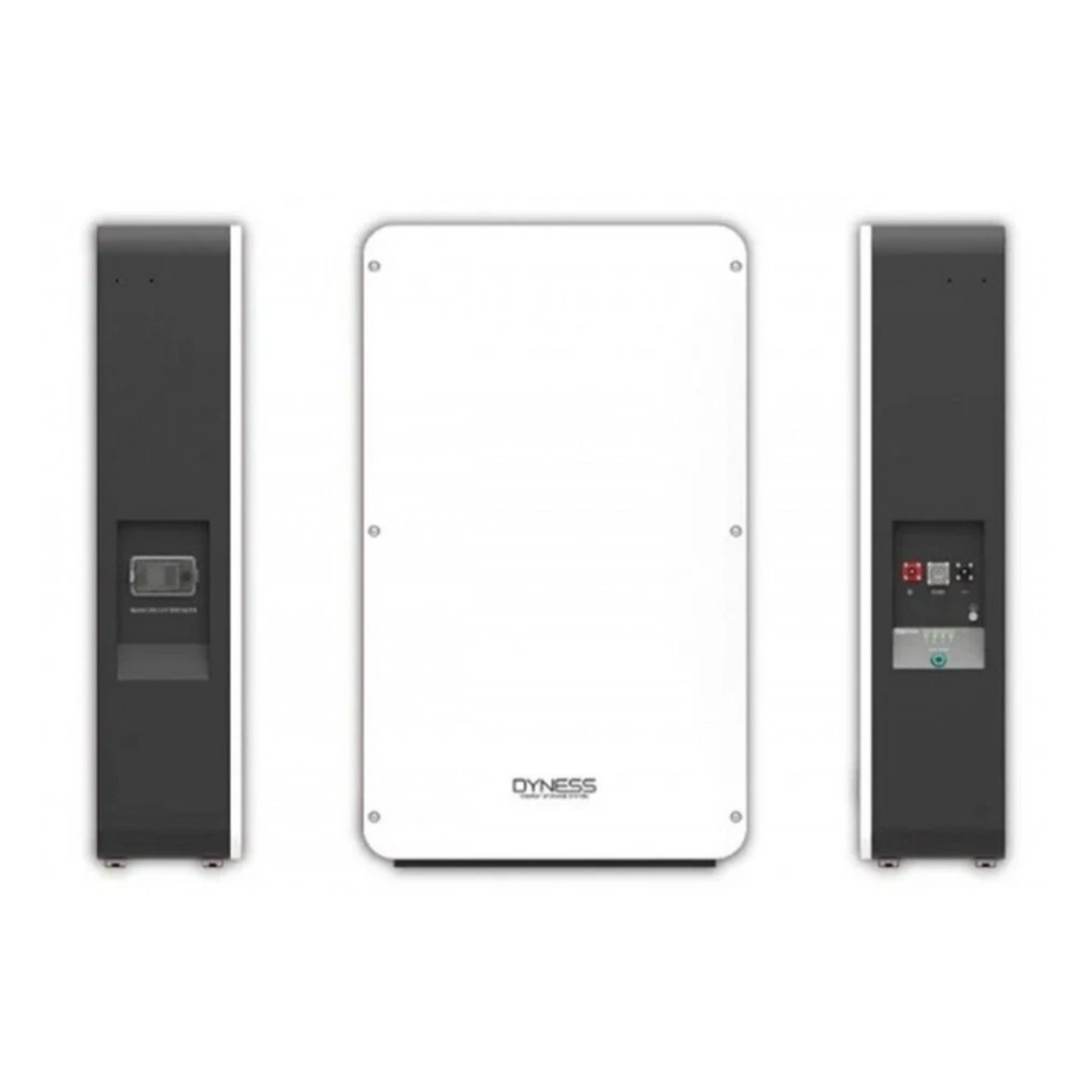

Dyness Powerbox Pro 10.24kWh Lithium Battery

The Dyness Powerbox Pro is a high-capacity, low-voltage lithium battery designed for residential energy storage applications. With a usable capacity of 10.24kWh and advanced LiFePO4 chemistry, it delivers high safety, long cycle life, and reliable performance for self-consumption and backup power scenarios.

The Powerbox Pro is built as a highly scalable solution, supporting up to 50 units connected in parallel, allowing total system capacity to expand up to 512kWh. This makes it suitable not only for homes with higher energy demands but also for larger residential or light commercial applications.

Flexible installation options allow the battery to be wall-mounted or floor-mounted, while its IP65-rated enclosure enables safe indoor or outdoor installation. The system is compatible with a wide range of leading inverter brands, offering excellent integration flexibility.

Key Features

• Scalable system supporting up to 50 units in parallel (512kWh total capacity)

• Reliable LiFePO4 battery chemistry for enhanced safety and longevity

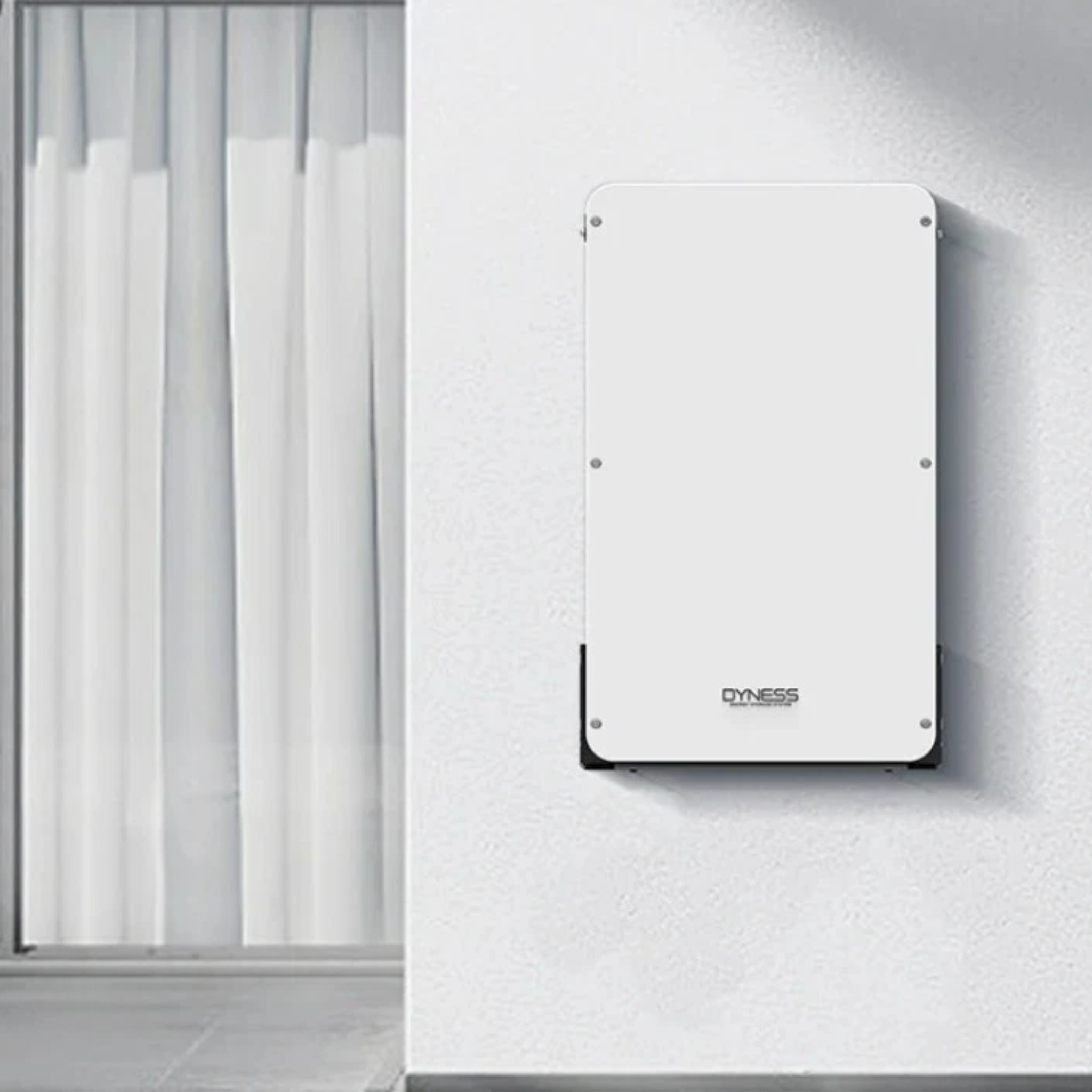

• Flexible installation with wall-mounted or floor-mounted options

• IP65-rated construction suitable for outdoor installations

• Battery equalisation supports mixing modules at different states of charge to protect battery life

• Comprehensive safety features including short-circuit lockout and surge resistance

• Wide compatibility with major inverter manufacturers

Specifications

• Battery Type: LiFePO4

• Nominal Battery Energy: 10.24 kWh

• Nominal Voltage: 51.2 V

• Nominal Power: 5.12 kW

• Recommended Depth of Discharge: 90%

• Net Weight: 99.3 kg

• Dimensions: 555 x 210 x 928 mm (W x D x H)

• Protection Level: IP65

• Expansion: Up to 50 units in parallel

• Compatible Inverters: SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, SolaX Power, LuxPower, DEYE

Applications

• Residential solar energy storage

• Self-consumption optimisation

• Backup power for essential household loads

• Scalable home and small commercial battery systems

What’s Included in the Box

• Dyness Powerbox Pro 10.24kWh Lithium Battery

• Integrated Battery Management System (BMS)


• User and installation documentation

Why Buy This Product

• High Energy Capacity: 10.24kWh usable storage with the ability to scale up significantly as energy needs grow.

• Robust Durability: IP65-rated enclosure and LiFePO4 chemistry ensure long-term reliability and safe operation.

• Flexible Installation: Suitable for both wall and floor mounting, indoors or outdoors.

• Wide Compatibility: Works seamlessly with a broad range of leading inverter brands.

• Long-Term Value: Designed for extended cycle life and future system expansion.

The Dyness Powerbox Pro offers a reliable and future-proof energy storage solution for households seeking flexibility, scalability, and long-term performance.
