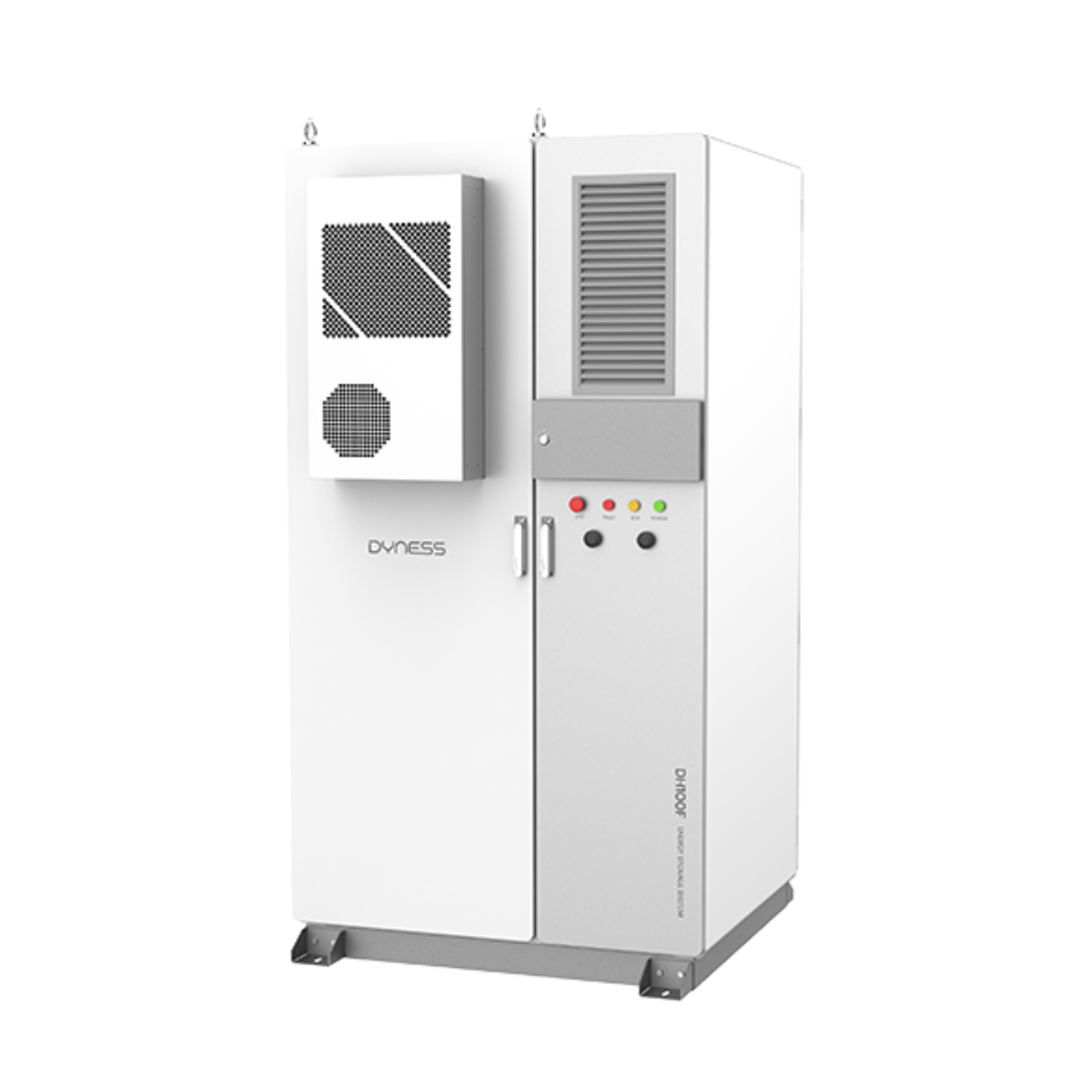

Dyness 100kWh All-in-One Unit DH100F

The DH100F series offers an all-in-one, multi-functional integration that supports PV and generator access, with seamless grid and off-grid switching. It features a selectable standalone capacity ranging from 71 to 100 kWh and includes a 280Ah LFP battery with high energy density. The system also incorporates EMS intelligent control and a modular design to reduce infrastructure costs, simplify installation, and improve overall system efficiency.

Designed for demanding energy environments, the DH100F is ideal for commercial buildings, industrial facilities, EV charging hubs, and renewable energy projects where energy resilience, peak shaving, and load management are essential.

Key Features

• Integrated 100kWh high-voltage energy storage system

• Lithium iron phosphate (LiFePO4) chemistry for maximum safety and longevity

• Designed for commercial and industrial energy storage applications


Specifications

• Brand: Dyness

• Model: DH100F-C100

• Battery Chemistry: Lithium iron phosphate (LiFePO4)

• Nominal Energy: 100 kWh

• Rated DC Power: Up to 100 kW

• Communication Interfaces: RS485/4G/Ethernet

• IP Rating: IP55

• Dimensions (W x D x H): 1360x1430x2560 mm

• Approximate Weight: 1800 kg

• Warranty: 10 years

• Certifications: CE, IEC 62619, VDE 2510-50, UL1973, UL9540A, UN38.3

Applications

• Commercial and industrial energy storage

• Peak shaving and load shifting

• Renewable energy integration

• Backup and resilience power systems

• Energy management system deployments

What’s Included in the Box

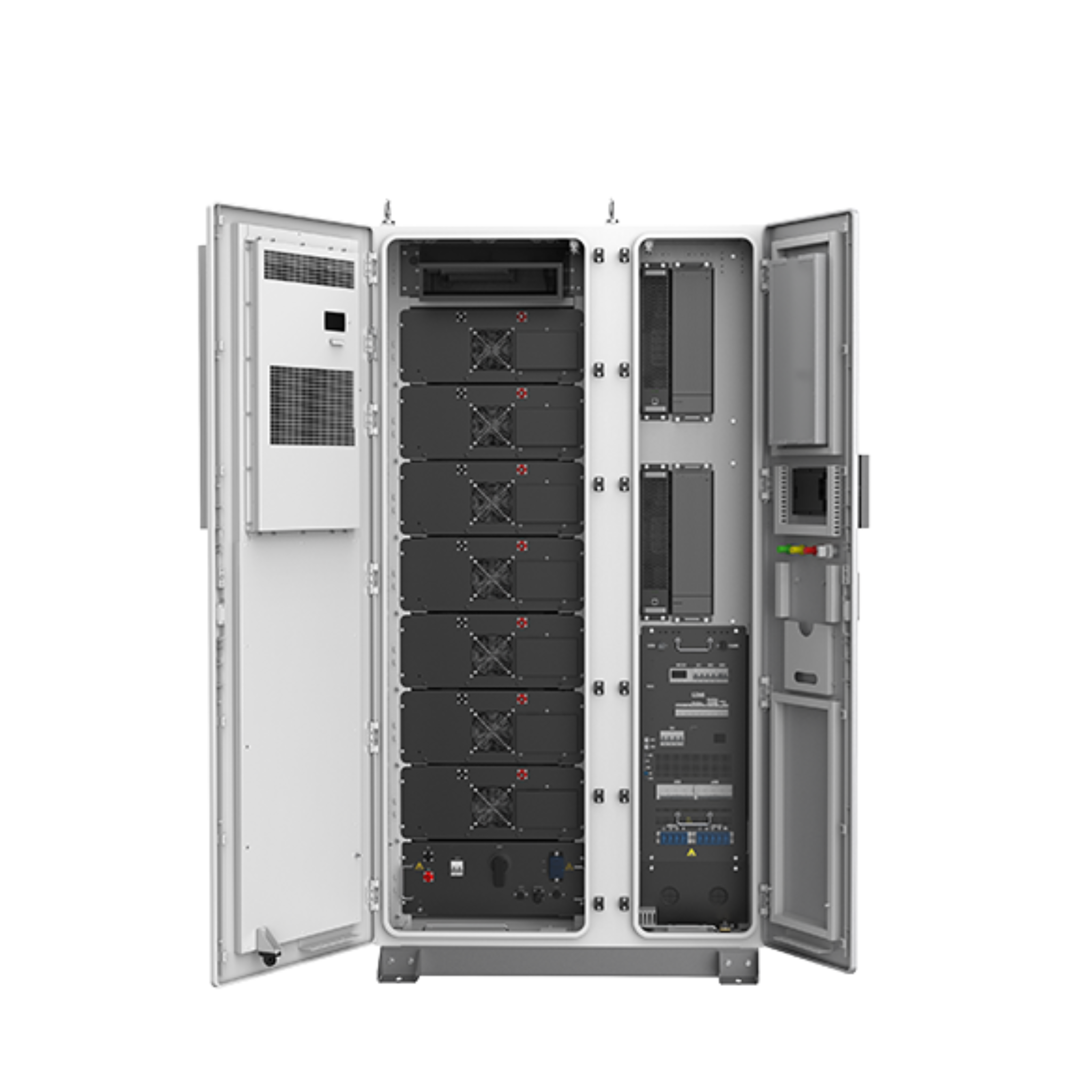

• Dyness DH100F-C100 high-voltage Cabinet Unit

• Integrated high-voltage control box

• Battery modules and internal wiring


• The Dyness DH100F is delivered as a standalone unit. Switches, wiring, and additional components must be sourced separately.

Why Buy This Product

• High-capacity all-in-one solution reduces installation complexity

• Proven Dyness LFP technology ensures long-term safety and performance

• Suitable for demanding commercial and industrial energy applications


• Backed by international certifications and a 10-year manufacturer warranty
