Description

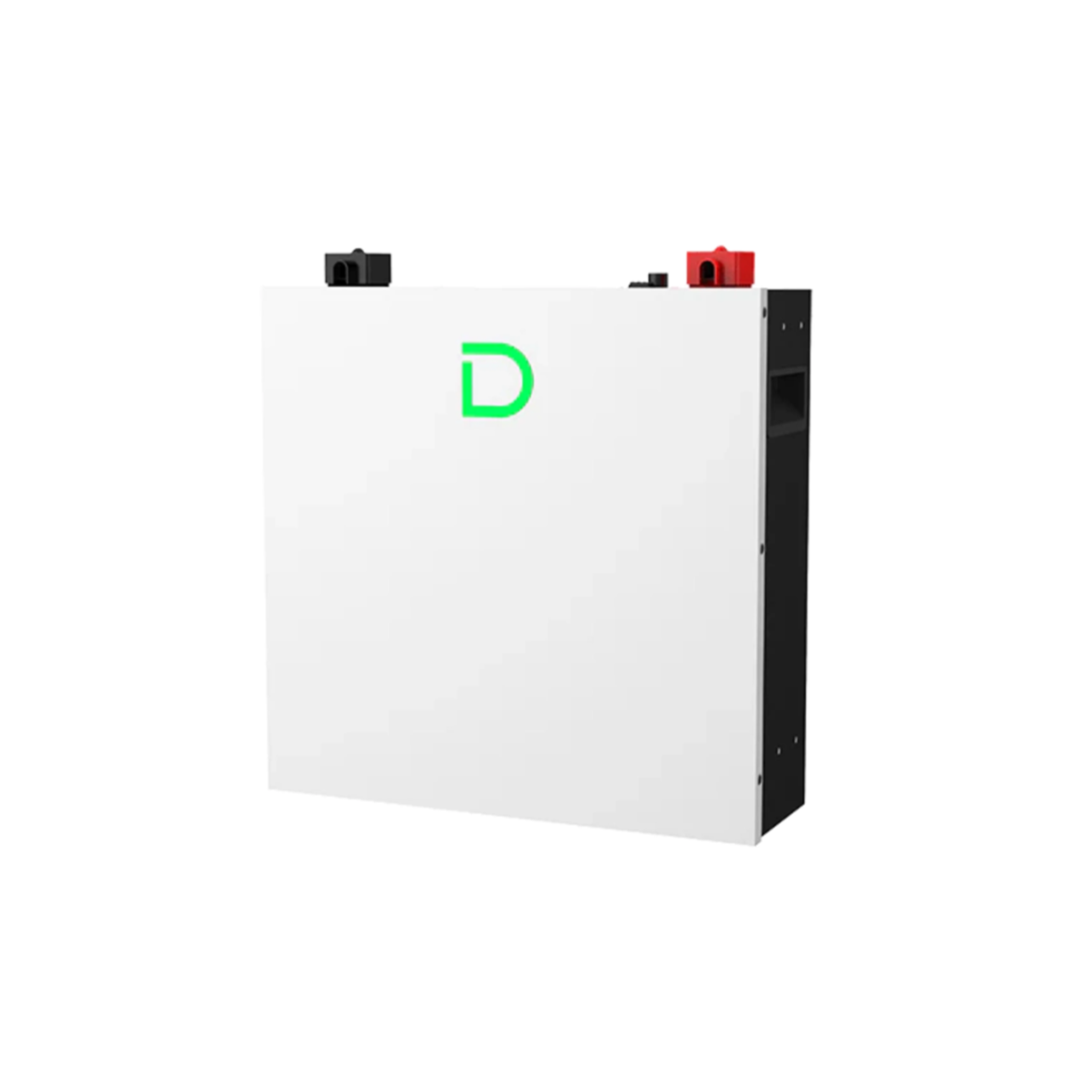

Dyness DL5.0C Pro Lithium Battery

Experience reliable energy storage with the Dyness DL5.0C Pro, a sleek and efficient lithium battery designed for domestic use. Perfect for powering your home with clean, consistent energy, it combines advanced technology with user-friendly design to keep your life running smoothly and sustainably.

Key Features

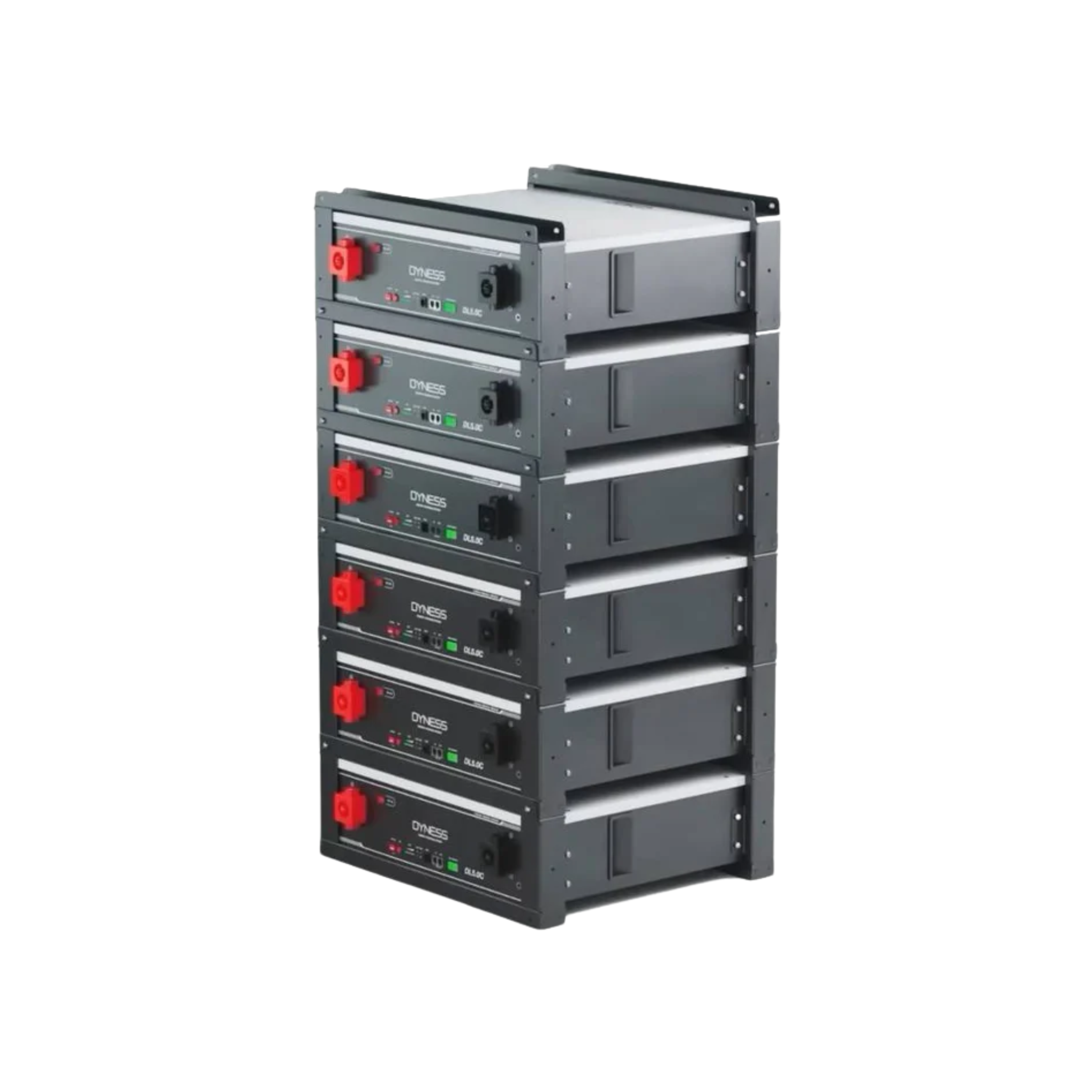

• High Capacity: Offers 5.12kWh of energy storage, with the capability to parallel up to 50 units for expanded power needs.
• Efficient Performance: Features a 1C discharge rate and a high Depth of Discharge (DoD) of 95% for optimal energy utilization.
• Advanced Safety: Equipped with an intelligent fire extinguishing system for enhanced protection.
• Integrated Connectivity: Built-in Wi-Fi eliminates the need for external dongles for monitoring and management.
• Wide Operating Temperature Range: Functions effectively between -20°C to 50°C, with an included heating function for cold environments.

Specifications

• Type of Product: Battery Module
• Dimensions: 488 x 515 x 150 mm
• Nominal Energy: 5120 Wh
• Depth of Discharge: 90.00 %
• Operating Voltage: 44.7-57.6V
• Weight: 46 kg
• IP Rating: IP20
• Discharge Rate: 1C
• Charge/Discharge Temperature: -20-50°C (with heating function)

Applications

This battery is ideal for domestic energy storage, providing clean and consistent power for homes. It can be used for off-grid systems, backup power solutions during outages, and enhancing solar energy self-consumption.

What's Included in the Box

• Dyness DL5.0C Pro Lithium Battery

Why Buy This Product

• High Energy Efficiency: With a 5.12kWh capacity and 95% DoD, maximise your stored energy and reduce reliance on the grid.
• Stylish Design: Sleek, modern design that fits seamlessly into a home environment.
• Robust Durability: Built to last with a wide operating temperature range and an intelligent fire extinguishing system for safety.
• Sustainability: Facilitates the use of clean energy, reducing carbon footprint and offering long-term cost savings.
• Long Warranty: Backed by Dyness's commitment to quality, ensuring peace of mind and reliable performance. (Refer to warranty document for details)

The Dyness DL5.0C Pro is engineered for modern homes seeking dependable and efficient energy storage solutions.

Documents

• Data Sheet: Data Sheet Dyness DL5.0C Pro
• Installation Guide / User Manual: User Manual DL5.0C PRO
• -- DL5.0C PRO: -- DL5.0C PRO
• CE Declaration of Conformity Dyness - DL5.0C: CE Declaration of Conformity Dyness - DL5.0C
• Product Compatibility Dyness DL5.0C: Product Compatibility Dyness DL5.0C
• Safety Transport & Handling Documentation Dyness - DL5.0C: Safety Transport & Handling Documentation Dyness - DL5.0C
