Description

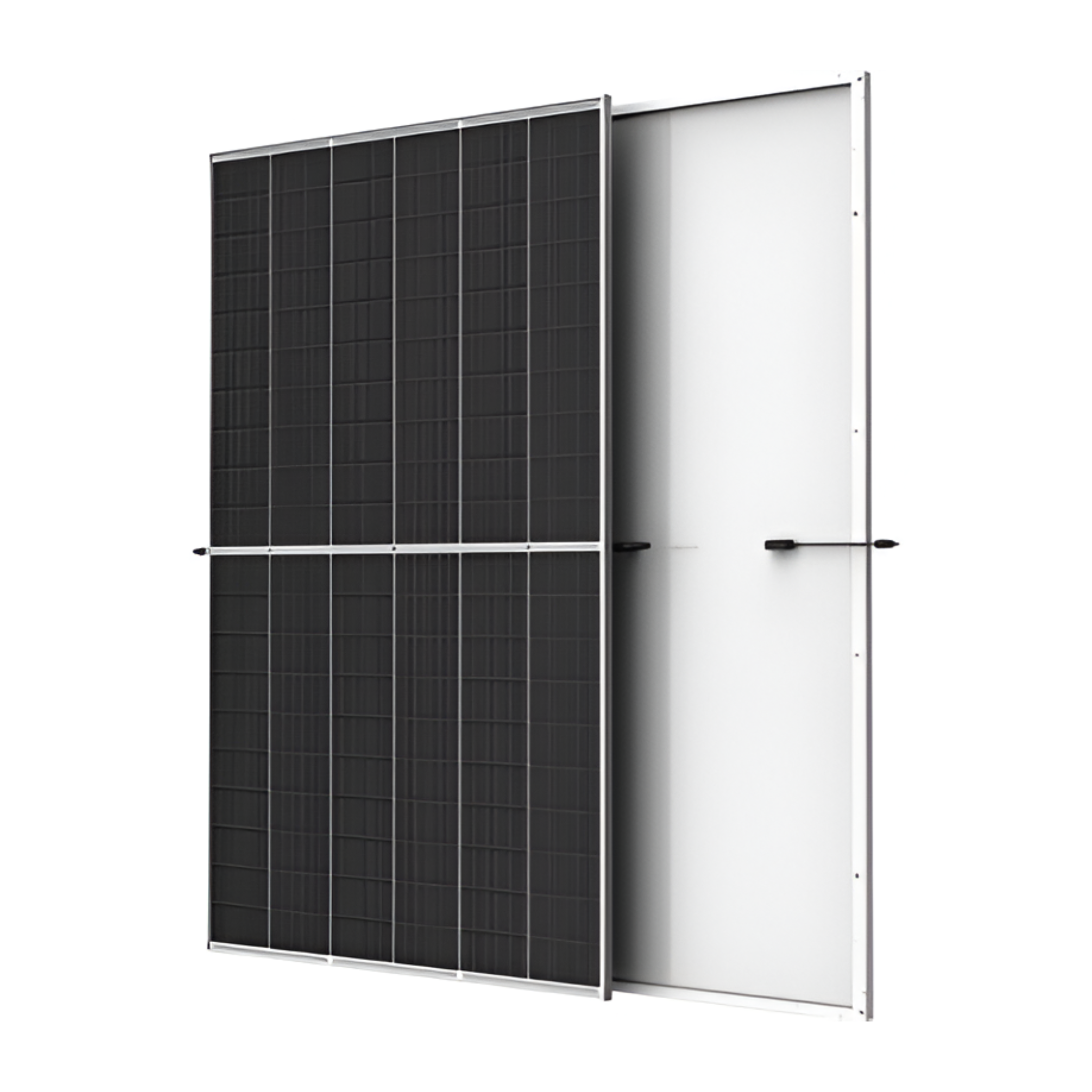

Dmegc 620W Infinity RT BiFacial Double Glass N-type Silver Frame Solar Panel – Pallet of 36

Maximise solar energy production with the Dmegc 620W Infinity RT BiFacial Double Glass N-type Solar Panel. Designed for high-performance installations, this panel combines advanced N-type monocrystalline technology with a durable double-glass design to deliver exceptional efficiency and reliability. Ideal for large-scale commercial or utility-scale solar projects, the pallet of 36 panels ensures consistent quality and simplifies logistics for bulk installations.

Key Features

• High Efficiency N-type Cells: Advanced monocrystalline N-type technology enhances power output and reduces degradation over time.

• BiFacial Design: Captures sunlight from both front and rear surfaces, increasing energy yield.

• Robust Double-Glass Construction: 2mm heat-strengthened glass on both sides ensures enhanced durability and resistance to environmental stresses.

• Optimised Thermal Performance: Low temperature coefficients help maintain higher output in hot conditions.

• Reliable Electrical Protection: Equipped with IP68-rated diodes and designed for high system voltages up to 1500V DC.

• Bulk Packaging: Pallet of 36 panels for streamlined transportation and installation efficiency.

Specifications

Module Specification

• Power: 620W

• Cell Type: N-type Mono-crystalline, 132(6×22)

• Dimensions: 2382 × 1134 × 30 mm

• Weight: 32.3 kg

• Glass: 2mm heat strengthened front and rear

Electrical Specifications

• Diodes: 3 Diodes, IP68 according to IEC 62790

• Cable: 4mm² / Portrait: 350mm (+) / 250mm (-), Landscape: 1300mm (+) / 1300mm (-)

• Connectors: Sunter PV-ZH202B; Stäubli PV-KST4-EVO2/xy_UR, PV-KBT4-EVO2/xy_UR, PV-KST4-EVO2A/xy, PV-KBT4-EVO2A/xy

• Nominal Module Operating Temperature (NMOT): 42 ± 2°C

• Temperature Coefficient of Pmax (%/°C): -0.29

• Temperature Coefficient of Voc (%/°C): -0.25

• Temperature Coefficient of Isc (%/°C): +0.048

Operating Conditions

• Operating Temperature: -40 to +70°C

• Maximum System Voltage: 1500 V DC (IEC)

• Overcurrent Protection Rating: 30 A

• Protection Class: Class II

Mechanical Load

• Max. Test Load, Push/Pull (Pa): Front 5400 / Back 3600

• Max. Design Load, Push/Pull (Pa): Front 3600 / Back 2400

Container & Pallet Info

• Pallet Dimensions: 2396 × 1140 × 1250 mm

• Pieces per Pallet: 36

• Pieces per 40HQ Container: 720

Statement: The installation instructions and warranty conditions must be followed. Due to technological progress, product parameters may be adjusted. For contract purposes, the latest company data prevails. All information corresponds to EN 50380. Document: EN DS-G12RT-B66HSW-20241106. ©DMEGC 2024 – All Rights Reserved

Applications

• Utility-scale solar farms

• Large commercial rooftops

• Industrial solar installations

• Ground-mounted PV systems

What’s Included in the Box

• 36 × Dmegc 620W Infinity RT BiFacial Double Glass N-type Silver Frame Solar Panels (Pallet)

• Standard packaging for transport safety

• Installation guide

Why Buy This Product

• High Energy Efficiency: N-type monocrystalline cells provide superior output with minimal degradation.

• Enhanced Yield: Bi-facial panels maximise energy generation from reflected light.

• Durable & Reliable: Double-glass design resists extreme weather, ensuring long-term performance.

• Bulk Convenience: Palletised for easy handling, storage, and large-scale deployment.

• Trusted Manufacturer: Dmegc is a globally recognised solar technology provider, ensuring quality and reliability.

Maximise your solar project’s efficiency and durability with the Dmegc 620W Infinity RT BiFacial Double Glass Solar Panel, engineered for large-scale success.

Disclaimer

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
