Description

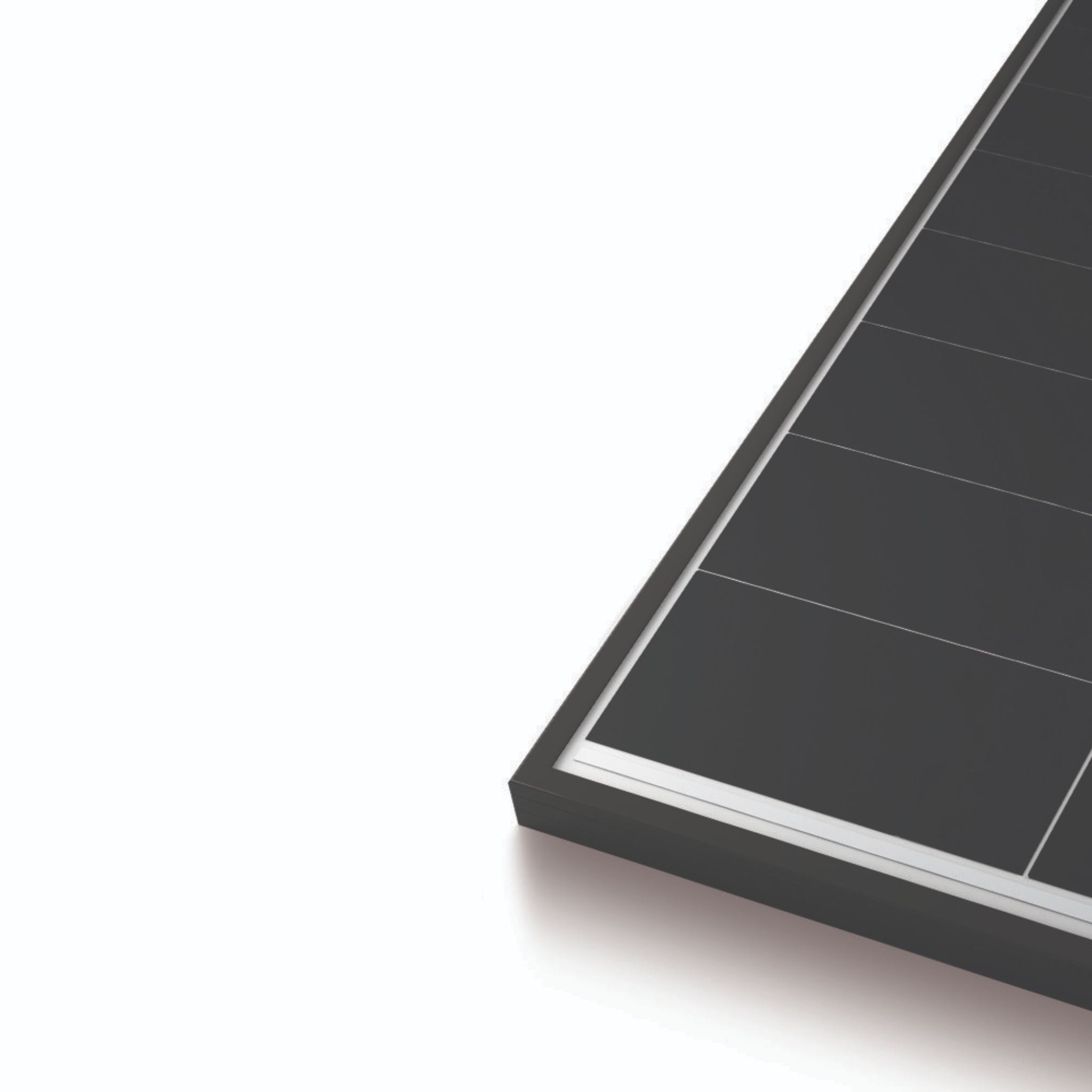

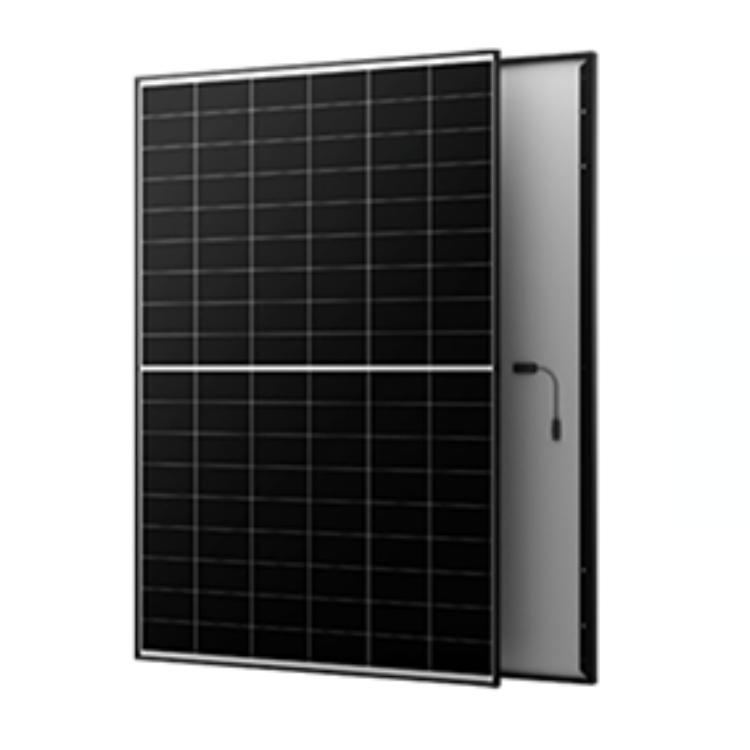

High-Efficiency N-Type ABC Solar Panel for Maximum Performance

The Aiko Neostar 2P 470W N-Type ABC Solar Panel delivers industry-leading efficiency and durability, making it an excellent choice for residential, commercial, and industrial solar power systems. With N-Type ABC (All-Back Contact) technology, this panel enhances energy conversion, reduces power loss, and ensures long-term reliability.

Key Features

• High Power Output: 470W peak power generation for superior energy yield.
• N-Type ABC Technology: Advanced all-back contact design eliminates front busbars, increasing light absorption and efficiency.
• High Efficiency: Industry-leading efficiency of up to 22.8%, optimizing performance in various weather conditions.
• Low Degradation Rate: Superior durability with only 0.35% annual degradation, ensuring long-term performance.
• Excellent Low-Light Performance: Maximizes energy production even in low-irradiance environments.
• Durable Black Frame Design: Enhances aesthetics and improves structural strength.
• PID-Resistant: Protects against potential-induced degradation for stable operation.
• Extreme Weather Resistance: Certified for high wind loads (2400 Pa) and snow loads (5400 Pa).
• Sustainable & Eco-Friendly: Designed with lead-free materials for reduced environmental impact.


Specifications

• Rated Power: 470 W
• MCS Reference: MR 50640718 0001/300
• Length: 1,757 mm
• Width: 1,134 mm
• Depth: 30 mm
• VMPP (Maximum Power Voltage): 33.9 V
• IMPP (Maximum Power Current): 13.87 A
• Isc (Short-Circuit Current): 14.61 A
• Voc (Open-Circuit Voltage): 40.89 V
• Temp. Coefficient (Mpp): -0.26 %
• Clamp Position on Panel: Long and short side
• Connector Type: MC4 EVO2
• Efficiency: 23.6 %
• Pallet Size: Oversized

• Frame Color: Black
• Connector Type: MC4-compatible
• Operating Temperature Range: -40°C to +85°C
• Certifications: IEC 61215, IEC 61730, CE, TUV
• Weight: 21 kg
• Part No: AIK-A-MAH54-470-BF-G2

What’s Included in the Box

• 1x Aiko Neostar 2P 470W N-Type ABC, 54 Cell, Black Frame, Solar Panel
• Pre-installed MC4 EVO2 connectors for easy connection
• Installation and safety manual
• Protective packaging to ensure safe delivery

Applications

• Residential Rooftop Installations: Perfect for homeowners seeking high-efficiency solar panels with modern aesthetics.
• Commercial & Industrial Projects: Suitable for businesses looking to maximize energy production and reduce electricity costs.
• Off-Grid & Hybrid Systems: Compatible with battery storage solutions for independent energy management.

Aiko Neostar Key Features:

• Award-Winning Design: Winner of the 2023 Intersolar Innovation Award, 2023 Red Dot Design Award, and 2024 ESG Transparency Recognition

• Industry-Leading Efficiency: No.1 efficiency in the market for residential modules

• Advanced Shade Tolerance: Exclusive cell-level partial shade optimisation – the only one of its kind in the industry

• Enhanced Fire Safety: High-temperature restriction for improved protection

• Durability: Excellent micro-crack resistance for long-term reliability

• Top Performance: Best-in-class temperature coefficient of -0.26% (verified by CEA PV Tech Lab)

• Sleek Aesthetics: Elegant, no-busbar appearance for a clean, modern look

Why Choose the Aiko Neostar 2P 470W Solar Panel?

The Aiko Neostar 2P 470W Solar Panel offers superior performance, durability, and efficiency compared to traditional panels. With cutting-edge N-Type ABC technology, lower degradation rates, and premium aesthetics, this panel is an ideal investment for both residential and commercial solar installations.

Disclaimer:

All product information provided by Solareon UK is intended for general guidance only and may be subject to change or error. Solareon UK does not accept liability for any inaccuracies or omissions in the product specifications displayed. For accurate and detailed technical information, please refer to the manufacturer’s official datasheet available in the 'Downloads' section. We strongly advise confirming all critical details directly with the manufacturer prior to making purchasing or installation decisions.
