Description

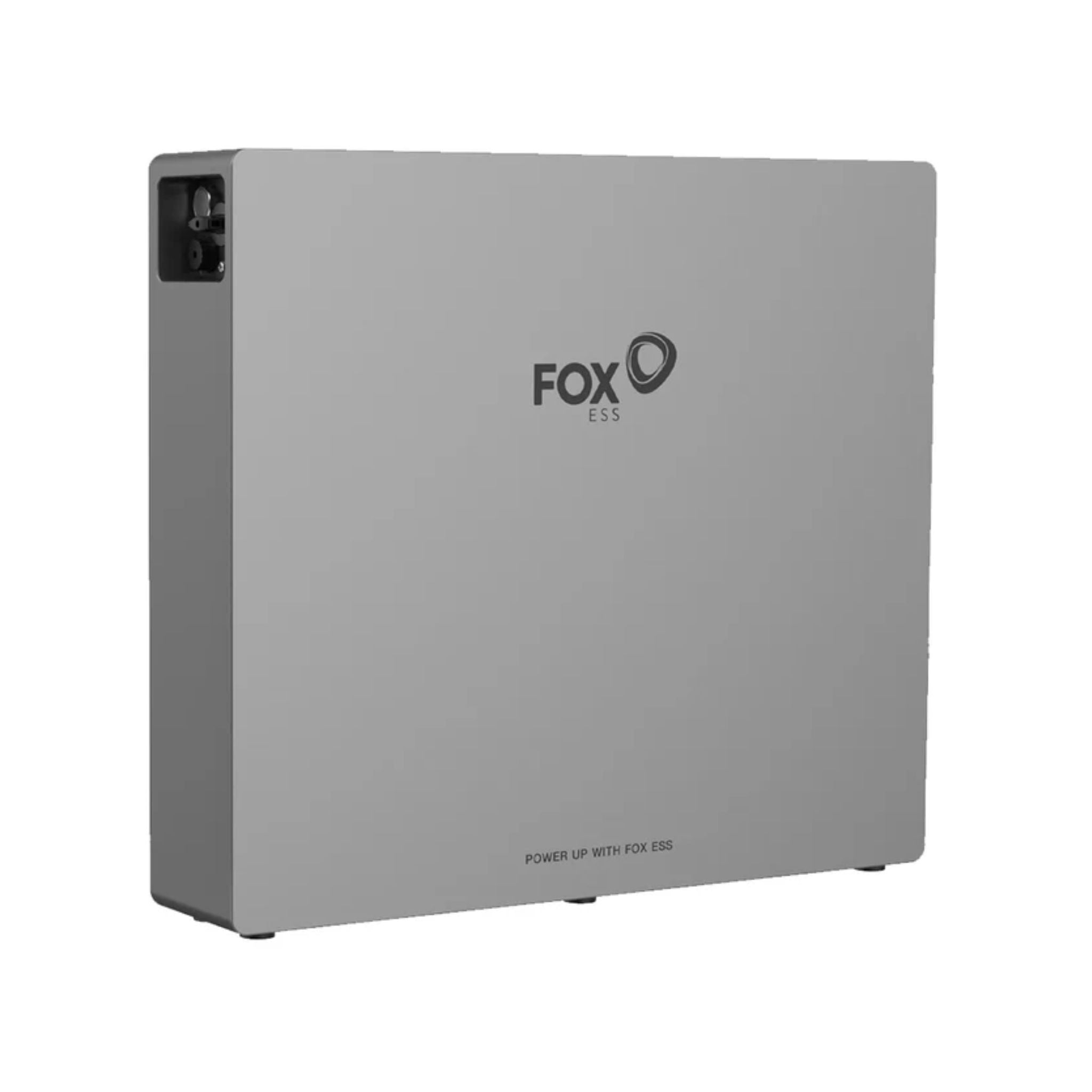

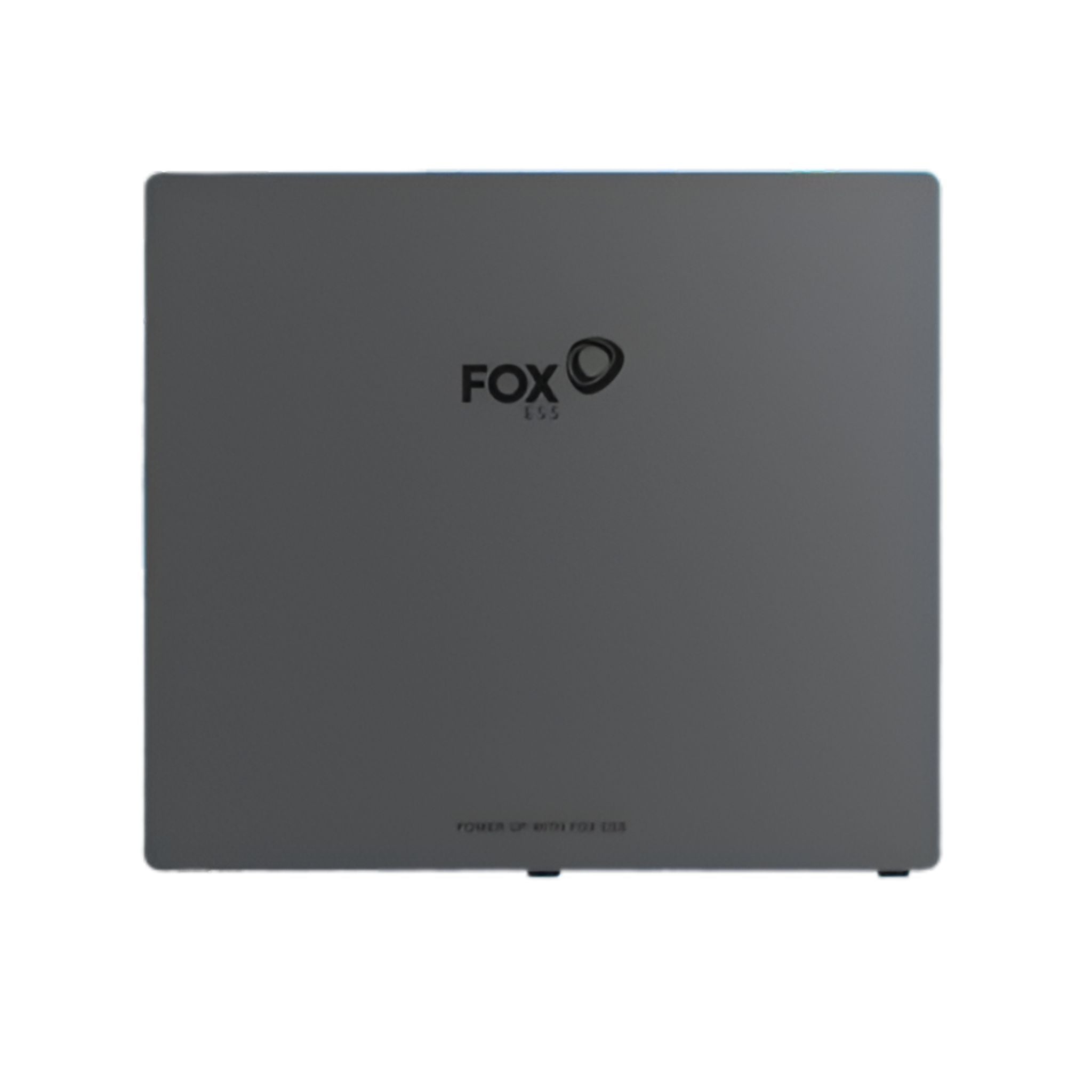

2x Fox ESS EP11 Battery for 20.72kWh Not Including Combiner Box with 10-Year Warranty

The Fox ESS EP11 Battery is a high-capacity, scalable energy storage solution designed for residential and commercial applications. This setup includes two EP11 batteries, providing a total storage capacity of 20.72kWh for enhanced backup power and self-consumption optimization. Built with LiFePO4 prismatic cell technology, these batteries ensure high efficiency, long cycle life, and superior safety.

This package does not include the required combiner box (FE-JUNBOX-HV), which is necessary to stack multiple batteries in parallel.

Key Features:

• Total Capacity of 20.72kWh – Ideal for high-demand energy storage applications
• 384V High-Voltage System – Improves efficiency and minimizes energy loss
• Scalable System – Supports up to 4 units in parallel for further expansion
• IP65 Rated – Suitable for both indoor and outdoor installation
• Natural Convection Cooling – Passive cooling for silent operation
• Long Cycle Life – Over 4,000 cycles for extended durability
• 10-Year Warranty – Reliable and long-term performance


Technical Specifications:

• Battery Type: LiFePO4 Prismatic Cell
• Nominal Energy (Total System): 20.72kWh
• Nominal Voltage: 384V
• Operating Voltage Range: 348V – 438V
• Max Charge/Discharge Current: 27A per battery
• Recommended Charge Current: 13.5A per battery
• Peak Discharge Current: 65A (60s) per battery
• Peak Charge Current: 32.4A (5s) per battery
• Round-Trip Efficiency: ≥95%
• Depth of Discharge (DoD): 90%
• Cycle Life: ≥4,000 cycles
• Communication: CAN
• Display: LED*5
• Scalability: Maximum 4 units in parallel


Power Ratings:

• Continuous Discharge Rate (Normal Use): 10,368 W
• Maximum Discharge Rate (5 Minutes): 10,368 W
• Surge Discharge Rate (15 Seconds): 24,960 W
• Maximum Charge Rate (5 Minutes): 10,368 W


Operating Conditions:

• Installation Location: Indoor/Outdoor
• Operating Temperature:
• Charge: 0°C to 55°C
• Discharge: -10°C to 55°C
• Storage Temperature: 0°C to 35°C
• Cooling Method: Natural Convection
• Humidity: 5% – 95% (Non-condensing)

• Altitude: Max. 2,000m

Mechanical Characteristics

• Dimensions (Per Battery, WHD): 710mm × 625mm × 147mm
• Weight (Total System): 198 kg

Certifications & Safety Standards:

• Safety: IEC62619
• EMC Compliance: EN IEC 61000-6-1/3
• Transportation Standard: UN38.3
• Ingress Protection: IP65

What’s Included in the Box?

• 2x Fox ESS EP11 10.36kWh Batteries
• User Manual
• Installation Accessories

Important Notes:

• Combiner Box Required – This package does not include the FE-JUNBOX-HV, which is necessary for stacking multiple batteries in parallel.
• Scalable System – Can be expanded further by adding up to 4 batteries in parallel.
• Professional Installation Required – Must be installed by a qualified electrician.
• Compatible with Fox ESS H1, KH, H3, H3-Pro, and US Series inverters.


The 2x Fox ESS EP11 Battery System provides a high-efficiency, scalable energy storage solution, making it ideal for homeowners and businesses looking to maximize self-consumption, backup power, and energy independence.
